Product Details:

Place of Origin: Germany
Brand Name: Germany BASF
Certification: MSDS
Model Number: PSU S3010
Document: Company color page PC..pdf

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD10-15KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Product Name: PSU S3010 Material Shape: Pellets
Grade: Injection Molding Grade MOQ: 1 Ton
Packing: 25 Kg/pack Type: 100% Virgin Material
Delivery Time: 7-15days Port: ShenZhen/GuangZhou,China
Highlight:

Stress Cracking Resistance PSU Material

,

BASF S3010 Psu Resin

,

Stress Cracking Resistance Polysulfone Material

Product Description



Products Description















Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 0















 PSU Germany BASF S3010 Stress Cracking resistance Chemical food medical grade polysulfone



Good heat resistance, high flow mechanical strength and a wide range of applications

product feature

PSU
3010
Product information
Other Certificates RoHS
Part Marking Code >PSU<

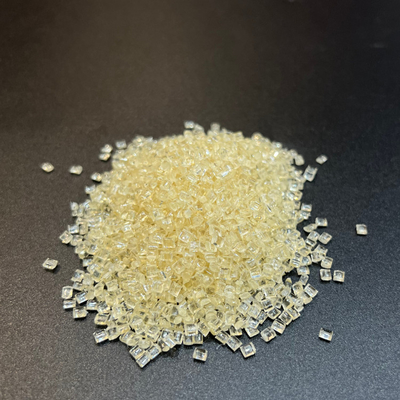

Material Shape Pellets
Process njection molding
Viscosity High viscosity
FR HB
specification EC1907/2006(REACH) ·UL
Features ·Chemical Resistant ·Stress crack resistance ·High toughness
Application ·Labware ·Housewares application
UL File NO. E41871
Certificate
Physical property Standard Value Unit
Density SO 1183 1.23 g/cm³
Shrinkage Flow ISO 294 0.7 %
Shrinkage xFlow SO 294 0.74 %
Water Absorption 50RH ISO62 0.3 %
Water Absorption Saturation ISO62 0.8 %
Melt Index 360℃10kg SO 1133 40 cm³/10min
Hardness Standard Value Unit
Ball Indentation Hardness SO 2039 135 MPa
Mechanical behavor Standard Value Unit
Tensile Modulus 23℃ ISO 527 2550 MPa
Tensile Strength Yield 23℃ ISO 527 75 MPa
Elongation Yield 23℃ ISO 527 6 %
zod Notch Impact -30℃ ISO 180 6 kJ/m²
zod Notch Impact 23℃ ISO 180 5.5 kJ/m²
Charpy Notch Impact -30°℃ ISO 179 6 kJ/m²
Charpy Notch Impact 23℃ SO 179 5.5 kJ/m²
Charpy Un-notch Impact -30℃ ISO179 NB kJ/m²
Charpy Un-notch Impact 23℃ ISO179 NB kJ/m²
Thermal Standard Value Unit
HDT 1.8MPa SO75 177 C
CLE Flow NTERNAL METHOD 5.3E-5 cm/cm/℃
Electrical propertes Standard Value Unit
Volume Resistivity EC 60093 1E+13 Ω.cm
Surface Resistivity EC60093 1E+15 Ω
Dielectric Strength EC 60243 37 KV/mm
Dielectric Constant 100Hz EC 60250 3.1
Dielectric Constant IEC 60250 3.1
Dissipation Factor 100Hz IEC60250 8
Dissipation Factor 1MHz EC 60250 64
CTI IEC60112 125 V
Fammability Standard Value Unit
Fame Rating All Color 0.75mm UL94 HB
Fame Rating AllColor 1.5mm UL94 HB
Fame Rating All Color 3.0mm UL94 HB
UL Standard Value Unit
UL FlameRating ALL 0.75mm UL94 HB
UL FlameRating ALL 1.5mm UL94 HB
UL FameRating ALL 3.0mm UL94 HB
HW ALL 0.75mm UL746A
1/2
4 PLC

Application





Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 1 Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 2



Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​



Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 6



Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 7

Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 8

Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 9 Germany BASF S3010 PSU Material Stress Cracking Resistance Polysulfone Material 10

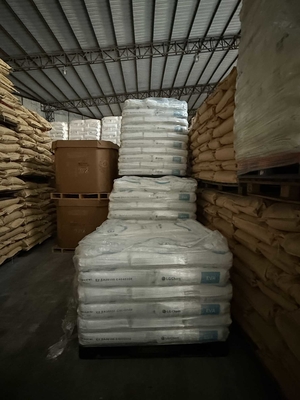

Warehouse:
