Chemical Resistance PA9T Polymer High Toughness Mechanical Applications PA9T Gf30
Product Details:
| Place of Origin: | Japan |
| Brand Name: | Otsuka Chemical |
| Certification: | Ocean freight appraisal report |
| Model Number: | PA9T NT36 |
| Document: | Company color page PC..pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25KG |
|---|---|
| Price: | USU 5-5.5KG |

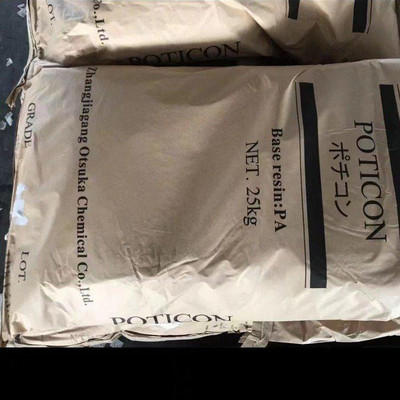

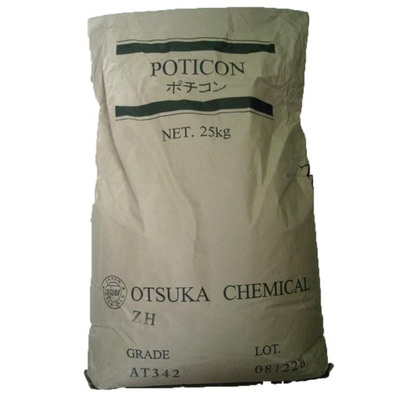

| Packaging Details: | 25 Kg/pack |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T |
| Supply Ability: | 500TONS |
|
Detail Information |
|||
| Shrinkage XHow: | 0.9% | Shrinkage Fow: | 0.4% |
|---|---|---|---|
| Tensile Strength: | 159MPa | Packing: | 25 Kg/pack |
| Application: | Electrical Application | Density: | 1.48g/cm² |
| Delivery Time: | 7-15days | Port: | ShenZhen/GuangZhou,China |
| Highlight: | Chemical Resistance PA9T Polymer,High Toughness PA9T Polymer,Mechanical Applications PA9T Gf30 |
||
Product Description
Products Description
|
|
PA9T Otsuka Chemical NT36 wear-resistant chemical resistance High strength high toughness Electronic and electrical components applications Precision mechanical applications |
| PA9T NT36 is suitable for many fields, including automotive, electronic appliances, precision machinery, etc. In the automotive field, it is often used in engine parts, cooling system components, etc., because of its high temperature resistance and chemical stability, it has become an ideal material for automotive lightweight design and improve fuel efficiency . In the electronic and electrical field, PA9T NT36 is suitable for electronic connectors, wire insulation, circuit board support and other components for surface adhesion technology (SMT), which helps to improve the reliability and stability of electronic equipment . In addition, PA9T NT36 can also be used in medical equipment, precision machinery and sporting goods . |
product feature
|
NT36 Product information |
||||
| Part Marking Code | >PA< | |||

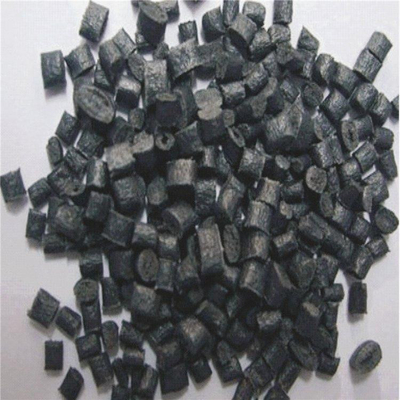

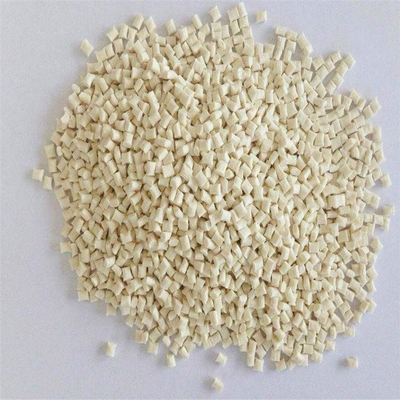

| Material Shape | Pellets | |||
| Process FR | Injection molding HB | |||
| specification | ·UL | |||
| Features | ·High gloss ·Dimensional stability | |||
| UL File NO | E96773 | |||
| Certificate | UL | |||
| Physical property | Standard | Value | Unit | |
| Density | ASTM D792 | 1.48 | g/cm² | |
| Shrinkage Fow | NTERNAL METHOD | 0.4 | % | |
| Shrinkage xHow | NTERNAL METHOD | 0.9 | % | |
| Water Absorption | ASTM D570 | 0.20 | % | |
| Hardness | Standard | Value | Unit | |
| Rockwell Hardness M(Scale) | ASTM D785 | 108 | ||
| Mechanical behavior | Standard | Value | Unit | |
| Tensile Strength | ASTM D638 | 159 | MPa | |
| Elongation Break | ASTM D638 | 3.0 | % | |
| Hexural Strength | ASTM D790 | 248 | MPa | |
| Fexural Modulus | ASTM D790 | 11.9 | GPa | |
| Lzod Notch Impact | ASTM D256 | 25 | J/m | |
| Friction Coefficient Dynamic VS S45C | NTERNAL METHOD | 0.53 | ||
| Specific Wear Rate 1MPa | NTERNAL METHOD | 0.0735 | mm/(N ·km) | |
| Specific Wear Rate 0.3m/s | NTERNAL METHOD | 0.0 | mm³/(N ·km | |
| Thermsl | Standard | Value | Unt | |
| HDT | ASTM D648 | 210 | ℃ | |
| CLE | NTERNAL METHOD | 2E-5 | cm/cm/C | |
| Fammablity | Standard | Value | Unit | |
| Flame Rating All Color 0.75mm | UL94 | HB | ||
| UL | Standard | Value | Unit | |
| UL FlameRating ALL 0.75mm | UL94 | HB | ||
| RTI Elec ALL0.75mm | UL746B | 65 | ℃ | |
| RTI Imp ALL0.75mm | UL746B | 65 | ℃ | |
| RTI Str ALL0.75mm | UL746B | 65 | ℃ | |
| Injection molding | Value | Unt | ||
| Melt Temperature | 260-280 | ℃ | ||
| Mould Temperature | 120-150 | ℃ | ||
| Injection Pressure | 40~60 | MPa | ||
Application
 |
|
|
Optical lighting
It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft. |
Electronic appliances
It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on. |
Mechanical equipment
It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields |
Physical Property Parameter
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
|
|

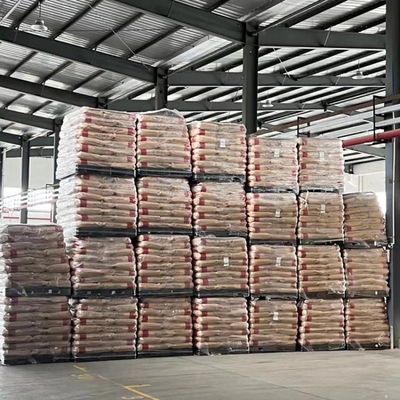

Warehouse:
|
|
|
|
FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client
| Application | Electronics electrical appliances mobile phones cars |
| Grade | Injection Grade,Extrusion Grade |
| OEM/ODM | Accepted |
Want to Know more details about this product
