Product Details:

Place of Origin: America
Brand Name: American Comus
Certification: MSDS
Model Number: PTFE 62X
Document: Company color page PC..pdf

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD21-22KG
Packaging Details: Plastic bag/Paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Product Name: PTFE 62X Color: Natural
Grade: Injection Molding Grade MOQ: 1 Ton
Packing: 25 Kg/pack Application: Electrical Application
Delivery Time: 7-15days Port: ShenZhen/GuangZhou,China
Highlight:

Heat Stable Polytetrafluoroethylene Powder

,

Food Grade Polytetrafluoroethylene Powder

,

Thermal Resistance PTFE Resin

Product Description



Products Description















Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 0

Us COMus PTFE 62X pipe grade high rigidity and high definition stress cracking resistance coating applied Teflon





PTFE itself is non-toxic, meets the safety standards of many industries, and can be safely used in industries such as food processing





product feature

PTFE 62X

Product information

Part Marking Code >PTFE-FR<
Color NC
Material Shape Powder
Process Extrusion molding
FR V-0 VTM-0
Material Attribute Flame retardant Heat stabilized grade Food Contact grade
specification ·UL

·Solvent Resistant ·Chemical Resistant ·Good flexibility ·High stiffness ·High toughness

Features ·Good weather resistance ·High Clarity ·High elongation ·Stress crack resistance

·Low friction ·Low water absorption

Application ·Pipe ·Wire &Cable ·Coating applications
UL File NO E54681
Certificate
Physical property Standard Value Unit
Density ISO 12086 2.152 g/cm³
Bulk Density ISO 12086 495 g/L
Particle Size Average ISO 12086 480 μm
Thermal Standard Value Unit
Melting Temperature lst Heating Peak SO 12086 341 ℃
Melting Temperature 2nd Heating Peak ISO 12086 322 ℃
Thermal Instability Index ISO 12086 7
Flammability Standard Value Unit
Flame Rating CL0.08mm UL94 VTM-0
Flame Rating CL0.75mm UL94 V-0
Flame Rating CL2.9mm UL94 V-0
UL Standard Value Unit
UL FlameRating CL0.08mm UL94 VTM-0
HWI CL0.08mm UL746A 4 PLC
HAI CL0.08mm UL746A 0 PLC
RTI Elec CL0.08mm UL746B 180 ℃
RTI Imp CL 0.08mm UL746B 180 ℃
RTI Str CL0.08mm UL746B 180 ℃
UL FlameRating CL075mm UL94 V-0
HWI CL0.75mm UL746A 2 PLC
HAI CL0.75mm UL746A 0 PLC
RTI Elec CL0.75mm RTI Imp CL0.75mm UL746B UL746B

180

180

℃ ℃
RTI Str CL0.75mm UL746B 180 ℃
UL FlameRating CL2.9mm UL94 V-0
HWI CL2.9mm UL746A 0 PLC
HAI CL2.9mm UL746A 0 PLC
RTI Elec CL2.9mm UL746B 180 ℃
RTI Imp CL29mm UL746B 180 ℃
RTI Str CL2.9mm UL746B 180 ℃
Comparative Tracking Index IEC60112 0 PLC
Dielectric Strength ASTM D149 30 KV/mm
Volume Resistivity ASTM D257 1.0E16 Ω.cm
HVTR UL746A 0 PLC
Arc Resistance ASTM D495 3 PLC
Dimensional Stability UL746 0.0 %





Application

Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 1 Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 2



Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 6

Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 7







Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 8 Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 9

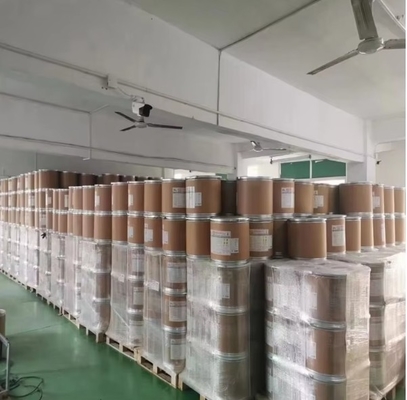

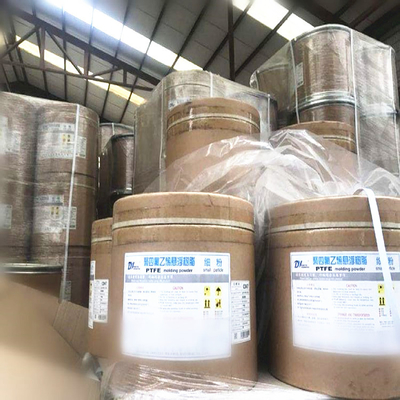

Warehouse:



Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 10 Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 11
Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 12 Us COMus PTFE 62X Pipe Grade High Rigidity And High Definition Stress Cracking Resistance Coating Applied Teflon 13
