Product Details:

Place of Origin: Taiwan
Brand Name: Taiwanization
Certification: MSDS
Model Number: PC AC3610

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD3-3.5KG
Packaging Details: Plastic bag/Paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500T
Get Best Price Contact Now

Detail Information

Density 23℃: 1.19 G/cm³ Additives: Flame Retardant Agent
Shrinkage 3.2mm: 0.5~0.7% Tensile Strength 23℃: 680 Kg/cm²
Flexural Modulus 23℃: 2150MPa HDT Unannealed 1.8MPa 3.2mm: 113℃
Highlight:

Halogen Free PC Material

,

Flame Proof PC Material

,

UV Resistant Polycarbonate Granules

Product Description

Products Description















Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 0















PC Taiwan Taihua AC3610 High Temperature, Halogen-Free, Flame Retardant And UV Resistant Size Stable Power Tools Automotive Battery Shell Applications





Pyrogenic grade PCAC3610 is a high quality pyrogenic grade polycarbonate material with excellent flame retardancy and heat resistance. It is suitable for adapter housing, transformer housing, battery housing and other fields, and has undergone strict quality control. Choose Taiwan Chemical fire resistant grade PCAC3610, you will get stable performance, safe and reliable products.



product feature

PC

AC3610



Product information

Other Certificates REACH
Part Marking Code >PC-FR<
Color Opaque
Material Shape Pellets
Process Injection molding
FR V-1V-05VB V-2
Material Attribute Bromine and chlorine free
specification ·REACH ·UL
Features ·Antimony free ·Self extinguishing
Application ·Auto battery case ·Projectors ·Transformer casing ·Housing
Additives Flame Retardant Agent
UL File NO. E162823
Certificate UL REACH
Physical property Standard Value Unit
Density 23℃ ASTM D792 1.19 g/cm³
Density 23℃ ISO 1183 1.19 g/cm³
Shrinkage 3.2mm ASTM D955 0.5~0.7 %
Shrinkage 3.2mm ISO 2577 0.5~0.7 %
Melt Index 300℃1.2kg ASTM D1238 10 g/10min
Melt Index 300℃1.2kg ISO 1133 10 g/10min
Hardness Standard Value Unit
Rockwell Hardness R(Scale)23℃ ASTM D785 122
Rockwell Hardness R(Scale)23℃ ISO 2039 122
Mechanical behavior Standard Value Unit
Tensile Strength 23℃ ASTM D638 680 kg/cm²
Tensile Strength 23℃ ISO 527 67 MPa
Flexural Strength 23℃ ASTM D790 1010 kg/cm²
Flexural Strength 23℃ ISO 178 99 MPa
Flexural Modulus 23℃ ASTM D790 22000 kg/cm²
Flexural Modulus 23℃ ISO 178 2150 MPa
Izod Notch Impact 23℃ 3.2mm ASTM D256 75 kg-cm/cm
Izod Notch Impact 23℃3.2mm ISO 180 735 J/m
Thermal Standard Value Unit
HDT Unannealed 1.8MPa 3.2mm ASTM D648 113
HDT Unannealed 1.8MPa 3.2mm ISO75 113
Flammability Standard Value Unit
Flame Rating All Color 0.6mm UL94 V-2
Flame Rating All Color 0.8mm UL94 V-1
Flame Rating AllColor 1.0mm UL94 V-0
Flame Rating All Color 1.2mm UL94 V-0
Flame Ratng AllColor 1.5mm UL94 V-0
Flame Ratng All Color 2.0mm UL94 V-05VB
Flame Ratng All Color 3.0mm UL94 V-05VB
UL Standard Value Unit
UL FlameRating ALL0.6mm UL94 V-2
UL FlameRating ALL 0.8mm UL94 V-1
UL FlameRating ALL 1.0mm UL94 V-0
UL FlameRating ALL 1.2mm UL94 V-0
UL FlameRating ALL 1.5mm UL94 V-0

UL FlameRating ALL 2.0mm

UL FlameRating ALL 3.0mm

UL94

UL94



V-05VB

V-05VB



Application





Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 1 Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 2



Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 6



Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 7

Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 8 Halogen Free PC Material Flame Proof And UV Resistant Polycarbonate Granules 9

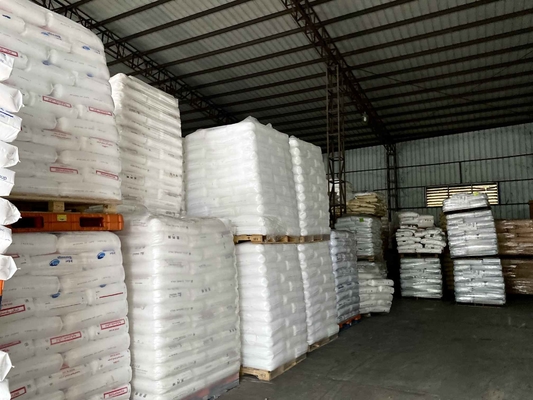

Warehouse:
