420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance

420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance

Product Details:

Place of Origin: America
Brand Name: Saber Foundation
Certification: MSDS
Model Number: PBT 420SE0

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD3-3.8KG
Packaging Details: Plastic bag/Paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Grade: Injection Molding Grade Packing: 25 Kg/pack
Application: Automotive Application Delivery Time: 7-15days
Port: ShenZhen/GuangZhou,China Color: Natural Color
Type: Raw Granules Resins
Highlight:

420SE0 Polybutylene Terephthalate Resin

,

GF30 Polybutylene Terephthalate Resin

,

420SE0 PBT Raw Material

Product Description



Products Description















420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 0

Saber Foundation PBT 420SE0 resin Injection molding GF30 Flame retardant V0 Heat resistance high rigidity high strength



The PBT 420SE0 has a wide range of applications due to its good performance
Electronic and electrical fields: can be used for cutting machine, food mixer motor stator and commutator, electric fan, connector, spool, switch and other products. These products usually require materials with good electrical, mechanical and flame retardant properties, and the PBT 420SE0 meets these requirements.
Automotive field: Due to its good mechanical properties, heat resistance and dimensional stability, it can also be applied to automotive parts, such as car bumpers, carburetors, spark plugs, oil supply system parts, igniters and so on

product feature

PBT
420SEO
Product information
Other Certificates MSDS
Part Marking Code >PBT-GF30-FR(17)<
Pellets

Material Shape
Process Injection molding
FR V-2 V-05VA
Material Attribute 30%Glass Fiber Reinforced Halogen Injection grade
specification ·UL-746C F2 ·RoHS ·UL
Features
Application ·Bobbins·Connector ·Switches·Commutators·Industrial
Halogen Flame Retardant Agent
cooling fan·Industrial electric
Additives
UL File NO. E121562
Certificate U MSDS
Physical property Standard Value Unit
Density ASTM D792 1.63 g/cm³
Density ISO 1183 1.63 g/cm³
Shrinkage Flow INTERNAL METHOD 0.1~0.5 %
Shrinkage Flow 3.2mm INTERNAL METHOD 0.5~0.7 %
Shrinkage xFlow INTERNAL METHOD 0.4~0.8 %
Shrinkage xFlow 3.2mm INTERNAL METHOD 0.5~1 %
Water Absorption 23℃ Saturation ISO 62 0.09 %
Water Absorption 23℃50RH ISO 62 0.07 %
Melt Index 250℃5kg ASTM D1238 42 g/10min
Melt Index 250℃ 5kg ISO 1133 29 cm³/10min
Specific Volume ASTM D792 0.61 cm³/g
Outdoor Suitability UL 746C f2
Hardness Standard Value Unit
Rockwell Hardness R(Scale) ASTM D785 119
Rockwell Hardness R(Scale) ISO 2039 119
Ball Indentation Hardness H358/30 ISO 2039 118 MPa
Mechanical behavior Standard Value Unit
Tensile Modulus 5mm/min ASTM D638 12000 MPa
Tensile Modulus 1.0mm/min ISO 527 10000 MPa
Tensile Strength Yield 5mm/min Type I ASTM D638 120 MPa
Tensile Strength Break 5mm/min Type I ASTM D638 120 MPa
Tensile Strength Yield 5mm/min ISO 527 120 MPa
Tensile Strength Break 5mm/min ISO 527 120 MPa
Elongation Yield 5mm/min Type I ASTM D638 2 %
Elongation Break 5mm/min Type I ASTM D638 2 %
Elongation Yield 5mm/min ISO 527 1.9 %
Elongation Break 5mm/min ISO 527 1.9 %
Flexural Strength Break 1.3mm/min ASTM D790 186 MPa
Flexural Strength ISO 178 180 MPa
Flexural Modulus 1.3mm/min ASTM D790 9800 MPa
Flexural Modulus 2.0mm/min ISO 178 9500 MPa
Izod Notch Impact 23℃ ASTM D256 60 J/m
Izod Notch Impact -30℃ ASTM D256 57 J/m
Izod Notch Impact 23℃4.0mm Type A ISO 180 7 kJ/m²
Izod Notch Impact -30℃4.0mm Type A ISO 180 6 kJ/m²
Izod Un-notch Impact 23℃ ASTM D4812 620 J/m
Izod Un-notch Impact 23℃4.0mm ISO 180 45 kJ/m²
Izod Un-notch Impact -30℃4.0mm ISO 180 45 kJ/m²





420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 1 420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 2



420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

 420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 6



Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 7 420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 8

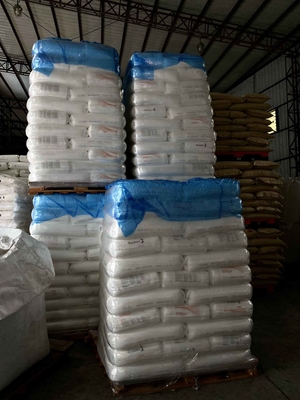

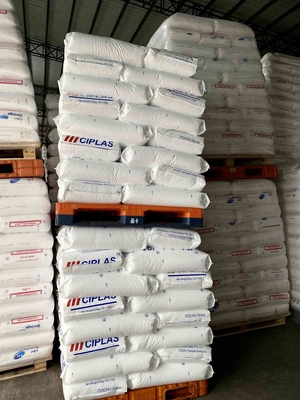

Warehouse:



420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 9 420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 10
420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 11 420SE0 Polybutylene Terephthalate Resin Injection Molding GF30 Heat Resistance 12

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client





Application Electronics electrical appliances mobile phones cars
