Transparent Ethylene Vinyl Copolymer Easy Forming UE630 Eva Resin Material
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | Formosa Plastics |
| Certification: | MSDS |
| Model Number: | EVA UE630 |
| Document: | Company color page PC..pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25KG |
|---|---|
| Price: | USD1-1.4 |
| Packaging Details: | Plastic bag/Paper bag |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T |
| Supply Ability: | 500TONS |
|
Detail Information |
|||
| Polymer: | Copolymer | Material Attribute: | Food Contact Grade |
|---|---|---|---|
| Packing: | 25 Kg/pack | Melt Index 2.16kg: | 2.5 |
| Delivery Time: | 7-15days | Port: | ShenZhen/GuangZhou,China |
| Melting Point: | 80-110°C | Uv Resistance: | Good |
| Tensile Strength: | 10-30 MPa | Application: | Shoe Soles, Packaging, Adhesives, Etc. |
| Flame Retardancy: | UL94 V-0 | Elongation At Break: | 200-600% |
| Color: | Transparent | Thermal Conductivity: | 0.3-0.4 W/mK |
| Hardness: | Shore A 40-90 | Material Type: | Ethylene Vinyl Acetate |
| Chemical Resistance: | Excellent | ||
| Highlight: | Transparent Ethylene Vinyl Copolymer,Easy Forming Ethylene Vinyl Copolymer,Easy Forming Eva Resin Material |
||
Product Description
Products Description
|
|
EVA UE630 Transparent Low-temperature Resistant Footwear Foam Food Packaging Resin Raw Materials |
|
EVA is a thermoplastic polymer material with excellent properties and a wide range of applications. Its high temperature resistance, high strength, chemical resistance, heat resistance and electrical insulation properties make it widely used in the automotive industry, electronics industry, chemical industry and machinery industry. |
| EVA | ||
| UE630 | ||
| Product information | ||
| Other Certificates | MSDS | |
| Part Marking Code | >EVA< | |
| Process | njection molding Extrusion molding Blow molding Compression M Molding |
olding Cast molding Foam |
| Polymer | Copolymer | |
| Material Attrnibute | Food Contact grade | |
| Features | High elasticity ·Stress crack resistance ·Low temperature flexibility ·Good processability Non-Toxic -Good flexibility ·High Clarity ·Good moldability |
|
| Application | Food packaging application -Medical packaging ·Packaging ·Medical devices Medical healthcare applications -Foam ·Profiles ·Sheet ·Footwear ·Shoe material application ·Blow molding applications ·Coextrusion applications Compression molding application -Foam injection molding applications Foaming technologies |
|
| Certificate |  |
|
| Physical property | Standard Value | Unit |
| Density | ASTM D792 0.937 | g/cm² |
| Melt Index | ASTM D1238 1.5 | g/10min |
| Viny Acetate Content | NTERNAL METHOD 16 | wt% |
| Hardness | Standard Value | Unit |
| Shore Hardness A | ASTM D2240 91 | |
| Mechanical behavior | Standard Value | Unit |
| Tensile Strength Break Molded | ASTM D638 170 | kg/cm² |
| Elongation UItimate Molded | ASTM D638 700 | % |
| Thermal | Standard Value | Unit |
| Vicat Softening Temperature | ASTM D1525 67 | ℃ |
| Melting Temperature | ASTM D3418 89 | ℃ |
| Low Temperature Brittleness F50 | ASTM D746 -76.0 | ℃ |
product feature
|
|
|
Optical lighting
It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft. |
Electronic appliances
It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on. |
Mechanical equipment
It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields |
Physical Property Parameter
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
|
|

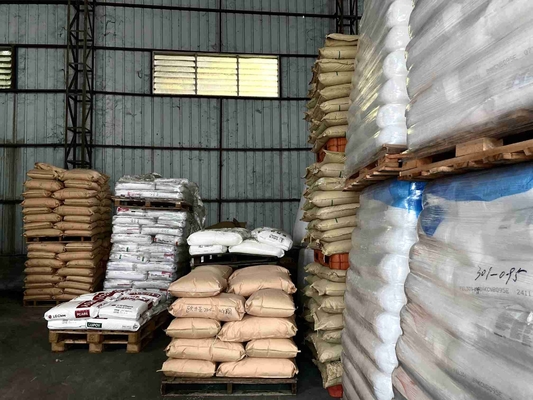

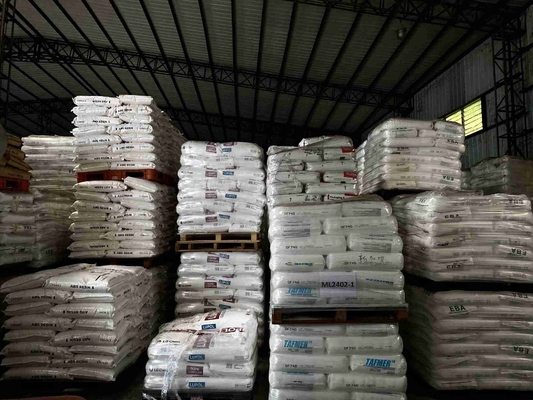

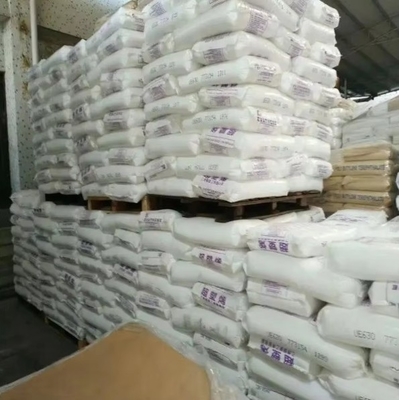

Warehouse:
|
|
|
|
