Product Details:

Place of Origin: Japan
Brand Name: Ube
Certification: MSDS
Model Number: PA12 3014U

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD7.5-8KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500T
Get Best Price Contact Now

Detail Information

Material: PA12 3014U Application: Injection Molding
Shape: Pellets Ingredient: 100% Virgin Material
Package: 25 KG PE Bag DELIVERY TIME: 7-15days
MOQ: 25KG
Highlight:

Flame Retardant Polyamide PA12

,

Automotive Parts Polyamide PA12

,

Anti UV Nylon Pa12

Product Description



Products Description















Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 0















PA12 Japan Ube 3014U Heat stable flame retardant anti-UV automotive parts applicatio

Good formability Good fluidity thermal stability Widely used in automotive fuel delivery pipe, automotive brake tube, air conditioning pipe, air pressure equipment hose, industrial high pressure hydraulic pipe, tube quick connector, automotive anti-lock system spiral shaft, precision gear, CAM and bearing taxi part, photocopier to electrostatic roller, antistatic container and IC chip guide rail, optical cable jacket, transparent pipe

product feature

PA12
3014U
Product information
Part Marking Code >PA12<
Color NC
Material Shape Pellets
Process Injection molding Coating
Viscosity Low viscosity
FR HB
Material Attribute Heat stabilized grade
specification ·UL
Features ·Unreinforced
Application ·Pipe coatings
UL File NO E48133
Certificate W
Physical property Standard Value Unit
Density ISO 1183 1.02 g/cm³
Shrinkage Flow 30x100x3mm INTERNAL METHOD 0.9 %
Shrinkage xFlow 30x100x3mm INTERNAL METHOD 0.9 %
Water Absorption 23℃50RH INTERNAL METHOD 0.7 %
Hardness Standard Value Unit
Rockwell Hardness R(Scale) ISO 2039 105
Mechanical behavior Standard Value Unit
Tensile Modulus ISO 527 1.5 GPa
Tensile Strength Yield ISO 527 47 MPa
Elongation Break ISO 527 50 %
Flexural Strength ISO 178 60 MPa
Flexural Modulus ISO 178 1.5 GPa
Charpy Notch Impact leA ISO 179 3 kJ/m²
Thermal Standard Value Unit
HDT 0.45MPa ISO 75 95
HDT 1.8MPa ISO 75 45
Melting Temperature ISO 11357 175~181
CLE ISO 11359 1.3E-4 cm/cm/℃
Electrical properties Standard Value Unit
Volume Resistivity JIS K6911 1E15 Ω.cm
Flammability Standard Value Unit
Flame Rating NC1.5mm UL94 HB
UL Standard Value Unit
UL FlameRating NC1.5mm UL94 HB
RTI Elec NC1.5mm UL746B 65
RTI Imp NC1.5mm UL746B 65
RTI Str NC 1.5mm UL746B 65

Application





Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 1 Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 2



Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 6





Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 7 Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 8

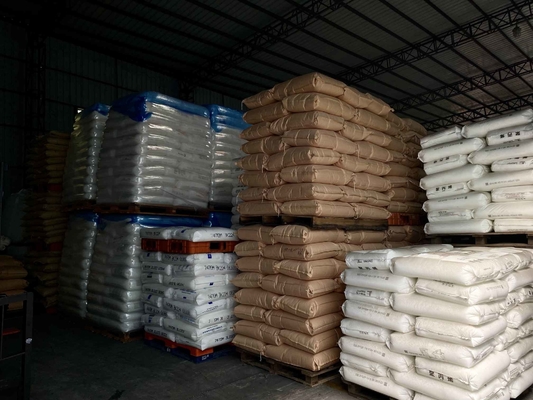

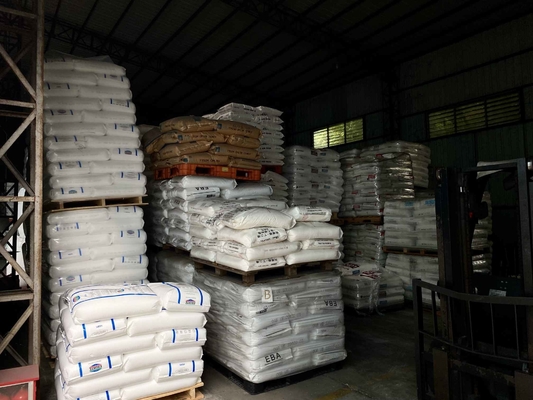

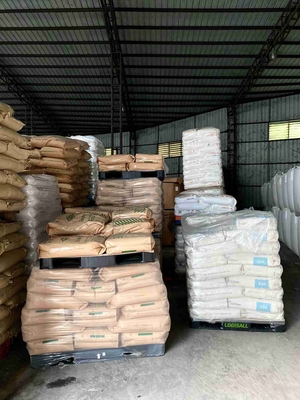

Warehouse:



Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 9 Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 10
Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 11 Flame Retardant Polyamide PA12 Anti UV Nylon Pa12 For Automotive Parts 12

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client





Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
