Product Details:

Place of Origin: US
Brand Name: Basic innovative plastic
Certification: Ocean freight appraisal report
Model Number: PA12 SL-4530

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD5-5.4KG
Packaging Details: PE paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Product Name: PA12 SL-4530 MOQ: 1 Ton
Type: Raw Granules Resins Port: ShenZhen/GuangZhou,China
Trading Method: Over-the-counter Market Demand: Stable
Highlight:

Injection Grade Polyamide PA12

,

Wear Resistant Polyamide PA12

,

Electrical Nylon 12 Material

Product Description



Products Description















Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 0

PA12 Basic innovative plastic (United States) SL-4530 injection grade lubricating wear-resistant electrical appliances plastic raw materials



With its excellent mechanical properties, chemical stability and processing convenience, PA12 SL-4530 has a wide range of application prospects in automotive parts, electronic appliances, medical equipment and other fields.

product feature

PA12
SP003(SL-4530)
Product information
Other Certificates MSDS
Part Marking Code >PA12-(PTFE+Si)15<
Color GY YL
Material Shape Pellets
Process Injection molding
Material Attribute 15%(PTFE+Silicone Oil)Filler Wear resistant grade
Certificate MSDS
Physical property Standard Value Unit
Density ASTM D792 1.09 g/cm³
Density ISO 1183 1.09 g/cm
Shrinkage Flow 24hr ASTM D955 0.9~1.1 %
Shrinkage xFlow 24hr ASTM D955 1.8~2 %
Shrinkage Flow 24hr ISO 294 1 %
Shrinkage xFlow 24hr ISO 294 1.9 %
Water Absorption 50RH 24hr ASTM D570 0.2 %
Mechanical behavior Standard Value Unit
Tensile Modulus 50mm/min ASTM D638 1370 MPa
Tensile Modulus 1.0mm/min ISO 527 1580 MPa
Tensile Strength Yield ASTM D638 37 MPa
Tensile Strength Break ASTM D638 35 MPa
Tensile Strength Yield ISO 527 38 MPa
Tensile Strength Break ISO 527 36 MPa
Elongation Yield ASTM D638 17.5 %
Elongation Break ASTM D638 23.9 %
Elongation Yield ISO 527 18.4 %
Elongation Break ISO 527 32.9 %
Flexural Strength ISO 178 44 MPa
Flexural Modulus ASTM D790 1370 MPa
Flexural Modulus ISO 178 1300 MPa
Izod Notch Impact 23℃ ASTM D256 53 J/m
Izod Notch Impact 23℃4.0mm Type A ISO 180 4 kJ/m²
Izod Un-notch Impact 23℃ ASTM D4812 683 J/m
Izod Un-notch Impact 23℃4.0mm ISO 180 48 kJ/m²
Friction Coefficient Dynamic ASTM D3702 0.23
Friction Coefficient Static ASTM D3702 0.14
Multiaxial Impact ISO 6603 7 J
Wear Factor Washer ASTM D3702 13 ft-Ib-hr
Instrumented Impact 23℃ Peak Energy ASTM D3763 5 J
Thermal Standard Value Unit
HDT Unannealed 0.45MPa 3.2mm ASTM D648 150
HDT Unannealed 1.8MPa 3.2mm ASTM D648 146
HDT 0.45MPa 4.0mm ISO 75 134
HDT 1.8MPa 4.0mm ISO 75 147
CLE Flow-40.0~40℃ ASTM E831 1.13E-4 cm/cm/℃
CLE xFlow-40.0~40℃ ASTM E831 1.08E-4 cm/cm/℃
CLE Flow-40.0~40℃ ISO 11359 1.12E-4 cm/cm/℃
CLE xFlow-40.0~40℃ ISO 11359 1.08E-4 cm/cm/℃
Injection molding Value Unit
Dry Temperature   80
Dry Time   4 hr
Water Content Control   ≤0.2 %
Zonel Temperature 1/2 215~225

Application





Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 1 Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 2



Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 6



Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 7 Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 8

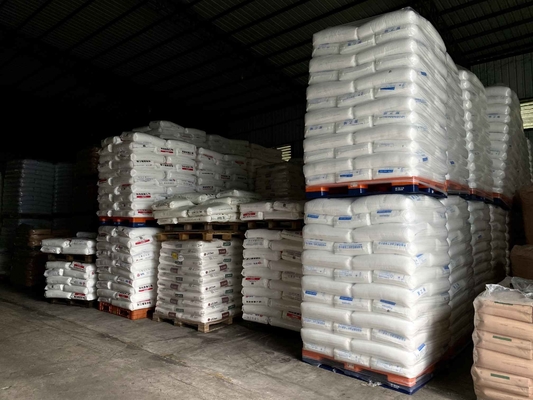

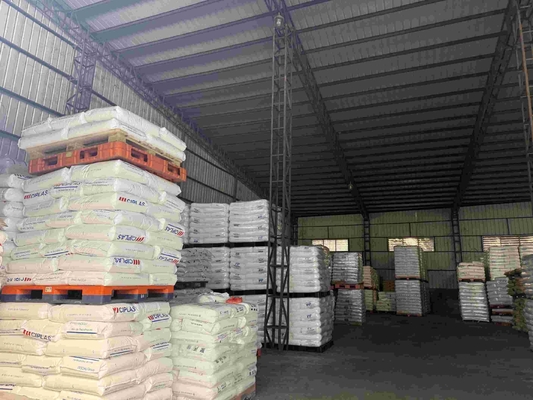

Warehouse:



Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 9 Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 10
Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 11 Injection Grade Polyamide PA12 Wear Resistant Electrical Nylon 12 Material 12

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client





Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
