Product Details:

Place of Origin: Taiwan, China
Brand Name: South Asia
Certification: MSDS
Model Number: PA6 2210G6

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD1-1.5KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Material Shape: Pellets Packing: 25 Kg/pack
Application: Injection Molding Port: ShenZhen/GuangZhou,China
Color: Natural Color Ingredient: 100% Virgin Material
Delivery Time: 7-15days MOQ: 1 Ton
Highlight:

2210G6 Polyamide 6 Pa6

,

Agricultural Machinery Polyamide 6 Pa6

,

2210G6 Nylon 6 Gf30

Product Description



Products Description















2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 0

PA6 South Asia 2210G6 High strength 30% glass fiber reinforced wear-resistant grade agricultural machinery application circuit breaker



Wide range of applications electronic and electrical fields: can be used for electronic and electrical components, in the long-term use of the process, can withstand repeated stress without fatigue damage, to ensure the stability and reliability of electronic and electrical products. It can carry out mechanical processing, such as cutting, drilling, milling, etc., to facilitate secondary processing and assembly according to actual needs, and meet the design requirements of different electronic and electrical products.
Automotive field: It has a wide range of applications in the automotive field, such as interior and exterior decoration parts, engine peripheral parts, etc. For internal and external components, it can meet the requirements of high heat resistance, rigidity and toughness, dimensional stability, high surface quality, etc. For the peripheral parts of the engine, it has the advantages of good strength and toughness, high heat resistance, good long-term fatigue resistance, good dimensional stability, good surface effect, and good oil resistance.
Lightweight advantages: PA6 material density is low, easy to form, large design freedom, in the trend of miniaturization and lightweight development of automobiles, the use of PA6 2210G6 can replace traditional metal materials, reduce the weight of automobiles, reduce energy consumption, and also have obvious advantages in mold and assembly costs

product feature

PA6
2210G6
Product information
Part Marking Code >PA6-GF30<
Pellets

Material Shape
Process Injection molding
FR HB
Material Attribute 30%Glass Fiber Reinforced Wear resistant grade
specification ·UL
Features ·Fatigue resistance·High strength·Machinable
Application ·Bicydle brake handle·Circuit breakers·Housing·Pelota racket frame
·Agricultural machinery applications
UL File NO. E235269
Certificate 2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 1 2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 2
Physical property Standard Value Unit
Density ASTM D792 1.35 g/cm³
Shrinkage Flow 3.0mm INTERNAL METHOD 0.5 %
Shrinkage xFlow 3.0mm INTERNAL METHOD 0.8 %
Melt Index 250℃2.16kg ASTM D1238 7 g/10min
Hardness Standard Value Unit
Rockwell Hardness R(Scale) ASTM D785 120
Mechanical behavior Standard Value Unit
Tensile Strength Yield ASTM D638 1700 kg/cm²
Elongation ASTM D638 4.8 %
Flexural Strength ASTM D790 2700 kg/cm²
Flexural Modulus ASTM D790 85000 kg/cm²
Izod Notch Impact ASTM D256 16 kg-cm/cm
Thermal Standard Value Unit
HDT 1.8MPa ASTM D648 210
Melting Temperature DSC INTERNAL METHOD 222
Electrical properties Standard Value Unit
Volume Resistivity ASTM D257 1E15 Ω.cm
Dielectric Strength ASTM D149 18 KV/mm
Dielectric Constant 1MHz ASTM D150 3.2
Dissipation Factor 1MHz ASTM D150 0.02
Arc Resistance ASTM D495 125 S
Flammability Standard Value Unit
Flame Rating AllColor 0.75mm UL94 HB
Flame Rating All Color 1.5mm UL94 HB
Flame Rating All Color 3.0mm UL94 HB
UL Standard Value Unit
UL FlameRating ALL 0.75mm UL94 HB
UL FlameRating ALL 1.5mm UL94 HB
UL FlameRating ALL3.0mm UL94 HB
HWI ALL 0.75mm UL 746A 4 PLC
HWI ALL1.5mm UL746A 3 PLC
HWI ALL3.0mm UL746A 3 PLC
HAI ALL 0.75mm UL 746A 0 PLC
HAI ALL1.5mm UL 746A 0 PLC
HAI ALL 3.0mm UL 746A 0 PLC
RTI Elec ALL 0.75mm UL746B 120
RTI Elec ALL 1.5mm UL746B 120
RTI Elec ALL 3.0mm UL746B 120
RTI Imp ALL 0.75mm UL746B 75

Application





2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 3 2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 4



2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 5

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 6Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 7Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 8







Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 9 2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 10

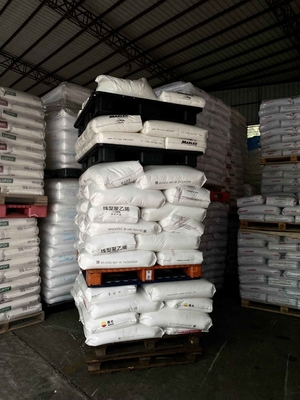

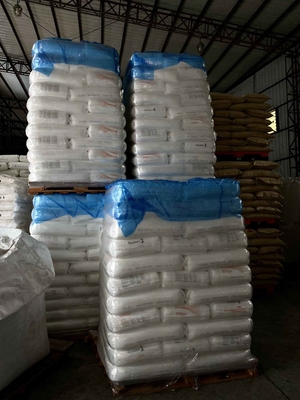

Warehouse:



2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 11 2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 12
2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 13 2210G6 Polyamide 6 Pa6 30% Glass Fiber Reinforced Agricultural Machinery 14

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client





Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
