DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery

DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery

Product Details:

Place of Origin: Taiwan/Netherlands
Brand Name: DSM
Certification: MSDS
Model Number: PA6 1010C2

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD2.4-2.8KG
Packaging Details: Plastic bag/Paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

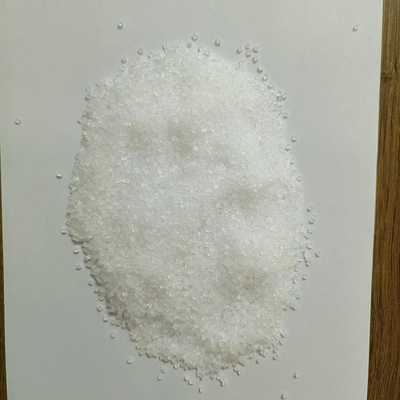

Process: Injection Molding Material Shape: Pellets
Grade: Injection Molding Grade Density: 1130 Kg/m³
Shrinkage Flow: 1.2% Viscosity Number: 118cm³/g
HDT 0.45MPa: 150℃ Port: ShenZhen/GuangZhou,China
Highlight:

DSM 1010C2 Polyamide Nylon Pa6

,

Easy Processing olyamide Nylon Pa6

,

Easy Processing PA6 Resin

Product Description



Products Description















DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 0















PA6 Netherlands DSM 1010C2 Wear-Resistant Toughening Chemical Resistance Injection Molding Electronic And Electrical Applications Automotive Parts Applications Industrial Applications



PA6 1010C2 is a polyamide 6 (nylon 6) material produced by DSM in the Netherlands. Its main characteristics include flame retardant, good processability, high strength, high wear resistance and chemical resistance ‌. Widely used in automotive parts, electronic appliances, industrial applications and industrial machinery and other fields. Specific application examples include bearings, cable sheathing, sealing gasket, cover circuit breaker, switch housing, coil spool, timer, fuel tank cover, intake grille, water tank cover, lamp holder, rope, transmission belt, cooling fan, door knob, etc ‌.



product feature

PA6
1010C2

Product information


Part Marking Code
Material Shape
Process
FR
Material Attribute
specification

Features





>PA6<
Pellets
Injection molding
V-2
Injection grade
·UL
·Smooth surface finish·High flow·Nucleated·Good moldability·Good mould release
·Lubricated
Additives Lubricant Nucleator
UL File NO. E172082
Certificate U
Physical property Standard   Value Unit
Density ISO 1183   1130 kg/m³
Shrinkage Flow ISO 294   1.2 %
Shrinkage xFlow ISO 294   1.3 %
Viscosity Number ISO 307   118 cm³/g
Mechanical behavior Standard Dry Wet Unit
Tensile Modulus ISO 527 3400 1700 MPa
Tensile Strength Yield ISO 527 87 54 MPa
Elongation Yield ISO 527 4.2 21 %
Elongation Break ISO 527 18 50 %
Flexural Strength ISO 178 102 50 MPa
Flexural Modulus ISO 178 2800 1000 MPa
Charpy Notch Impact 23℃ 1eA ISO 179 4.2 26 kJ/m²
Charpy Un-notch Impact 23℃ ISO 179 NB NB kJ/m²
Thermal Standard   Value Unit
HDT 1.8MPa ISO 75   61
HDT 0.45MPa ISO 75   150
Melting Temperature 10℃/min ISO 11357   220
CLE Flow ISO 11359   7E-5 cm/cm/℃
CLE xFlow ISO 11359   8E-5 cm/cm/℃
Electrical properties Standard Dry Wet Unit
Volume Resistivity IEC 60093 1E+13   Ω.m
Surface Resistivity IEC 60093   2E+14 Ω
Dielectric Strength IEC 60243 27   KV/mm
Dielectric Constant 100Hz IEC 60250 4
Dielectric Constant 1MHz IEC 60250 4
Dissipation Factor 100Hz IEC 60250 0.011
Dissipation Factor 1MHz IEC60250 0.023
CTI IEC 60112 600   V
Flammability Standard   Value Unit
Flame Rating All Color 0.81mm UL94   V-2
Flame Rating All Color 1.5mm UL94   V-2
Flame Rating All Color 3.0mm UL94   V-2
UL Standard   Value Unit
UL FlameRating ALL0.81mm UL94   V-2
UL FlameRating ALL1.5mm UL94   V-2
UL FlameRating ALL 3.0mm UL94   V-2
HWI ALL 0.81mm UL746A   4 PLC
HWI ALL1.5mm UL 746A   4 PLC
HWI ALL 3.0mm UL746A   3 PLC



Application



DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 1 DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 2



DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 6

DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 7





Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 8 DSM 1010C2 Polyamide Nylon Pa6 Easy Processing For Industrial Machinery 9

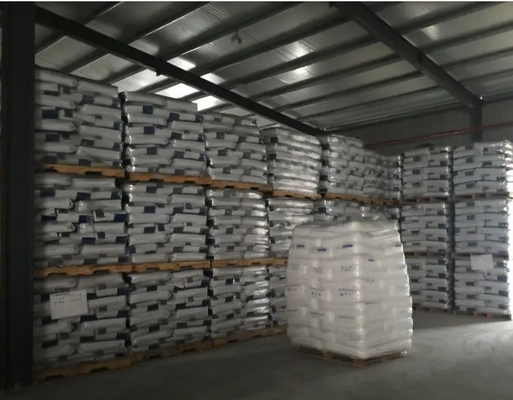

Warehouse:
