GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free

GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free

Product Details:

Place of Origin: America
Brand Name: Radici
Certification: MSDS
Model Number: PA66 GT3300HSL BK20

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD3.2-4KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Material: PA66 GT3300HSL BK20 Color: Natural Color Black
Shape: Pellets Grade: Injection Molding Grade
Ingredient: 100% Virgin Material Port: ShenZhen/GuangZhou,China
Delivery Time: 5-14days Application: Injection Molding
Highlight:

GT3300HSL BK20 Pa66 Material

,

Halogen Free Pa66 Material

,

Injection Grade Pa66 25gf

Product Description



Products Description















GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 0















Radigi PA66 GT3300HSL BK20 Glass Fiber Reinforced 25% Injection Grade Halogen-Free Flame Retardant V0 High Strength Household Appliances



Multi-purpose high performance: PA66 GT3300HSL BK20 is a multi-purpose high performance polyamide with high mechanical strength and stiffness, good electrical insulation properties, excellent heat resistance, chemical resistance and wear resistance.
Machinability: The material has good color stability, universal easy injection molding, making the processing more convenient.
Wide range of applications: PA66 GT3300HSL BK20 is suitable for automotive parts, connectors, electronic parts, mechanical configuration, building materials and other fields

product feature

PA66
GT3300HSL BK20
Product information
Other Certificates MSDS
Part Marking Code >PA66-I-GF33<
Color BK
Material Shape Pellets
Process Injection molding
Material Attribute Impact modified 33%Glass Fiber Reinforced Injection grade Heat stabilized grade
Features ·High impact ·High stiffness
Automotive Specifications ·FORD WSS-M4D703-B1
Additives Heat Stabilizer Impact modifier
GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 1Certificate
Physical property Standard Value Unit
Density ISO 1183 1.34 g/cm³
Shrinkage Flow ISO 294 0.50~0.70 %
Shrinkage xFlow ISO 294 0.30~0.50 %
Water Absorption 23℃ Saturation 2.00mm ISO 62 1.1 %
Water
Absorption 23℃ 50RH Equilibrium 2.00mm
ISO 62 1.7 %
Mechanical behavior Standard Value Unit
Tensile Modulus ISO 527 1450000 psi
Tensile Strength Break ISO 527 24700 psi
Elongation Break ISO 527 4.0 %
Flexural Strength 2.0mm/min ISO 178 36300 psi
Flexural Modulus 2.0mm/min ISO 178 1150000 psi
Izod Notch Impact 23℃ ISO 180 9.5 ft · Ib/in²
Charpy Notch Impact ISO 179 7.1 ft · Ib/in²
Charpy Notch Impact ISO 179 10 ft.Ib/in²
Thermal Standard Value Unit
HDT Unannealed 0.45MPa ISO 75 491 F
HDT Unannealed 1.8MPa ISO 75 477 F
Melting Temperature 10℃/min ISO 11357 504 F
Injection molding   Value Unit
Dry Temperature   176 F
Dry Time   2.0~4.0 hr
Water Content Control   ≤0.15 %
Melt Temperature   536~572 F
Mould Temperature   176~212 F
Injection Speed   Moderate-Fast
Dew Point   -4.0 F



Application





GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 2 GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 3



GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 4

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 5Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 6Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 7





Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 8 GT3300HSL BK20 Pa66 Material Injection Grade Pa66 25gf Halogen Free 9

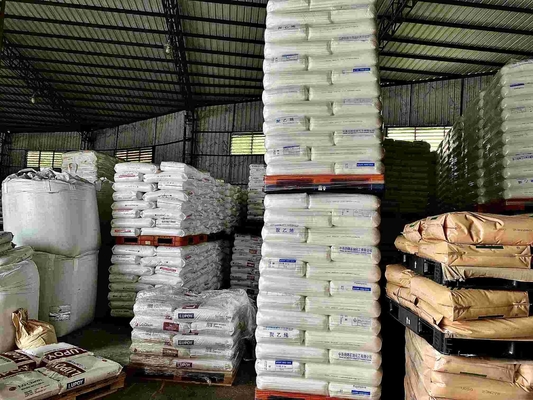

Warehouse:
