Product Details:

Place of Origin: America
Brand Name: Ascend
Certification: MSDS
Model Number: PA66 41

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD4.8-5.6KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Features: High Gloss Color: Natural Color Black
Application: Injection Molding Grade: Injection Molding Grade
Shape: Pellets Delivery Time: 5-14days
Port: ShenZhen/GuangZhou,China MOQ: 25kg
Ingredient: 100% Virgin Material
Highlight:

41H BK0677 Polyamide Pa 66

,

Aerospace Applications Polyamide Pa 66

,

Heat Stability Pa66 Pellets

Product Description



Products Description















41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 0















Us Ascend PA66 41H BK0677 Ultra high impact heat stability Wear resistance low temperature impact resistance Aerospace applications



PA66 41 is a high-performance engineering plastic that combines high strength, chemical resistance, wear resistance, heat resistance and good electrical insulation, making it ideal for many critical industrial applications

product feature

PA66
41
Product information
Other Certificates REACH
Part Marking Code >PA66-HI<
Color NC BK
Material Shape Pellets
Process Injection molding
FR HB
Material Attribute Super High Impact Injection grade Heat stabilized grade
specification ·UL
  ·Smooth surface finish ·Good abrasion resist · Impact modified ·Super high impact

Features
·High melting point ·Chemical Resistant ·Gasoline Resistant ·Motor oils Resistant
·Solvent Resistant ·Contains Recycled Materials ·General purpose grade
·Good processability
Application ·Automotive applications ·Fasteners ·Engine gearing ·Electrical Connector
· Industrial Applications ·Clips ·Metal replacement ·Electrical cable ties
Automotive Specifications ·ASTM D4066 PA0151
Additives Impact modifier
UL File NO. E70062
Certificate U

Physical property Standard   Value Unit
Density ISO 1183   1.08 g/cm³
Shrinkage Flow 2.0mm ASTM D955   1.6 %
Shrinkage xFlow 2.0mm ASTM D955   2.2 %
Water Absorption 24hr ASTM D570   0.99 %
Mechanical behavior Standard Dry Wet Unit
Tensile Strength Yield ISO 527 52   MPa
Elongation Break ISO 527 52 105 %
Flexural Strength ISO 178 66 27 MPa
Flexural Modulus ISO 178 1965 738 MPa
Izod Notch Impact 23℃4.0mm ISO 180 64   kJ/m²
Izod Notch Impact -40℃4.0mm ISO 180 16.7   kJ/m²
Thermal Standard   Value Unit
HDT 1.8MPa ISO75   64
Melting Temperature ISO 3146   262
Electrical properties Standard   Value Unit
Volume Resistivity ASTM D257   1.8E+15 Ω.cm
Dielectric Strength Short Time ASTM D149   22.5 KV/mm
Dielectric Strength Step by Step ASTM D149   21.5 KV/mm
Dielectric Constant 100Hz ASTM D150   3.5
Dielectric Constant 1KHz ASTM D150   3.4
Dielectric Constant 1MHz ASTM D150   3.0
Dissipation Factor 100Hz ASTM D150   0.02
Dissipation Factor 1KHz ASTM D150   0.02
Dissipation Factor 1MHz ASTM D150   0.02
Flammability Standard   Value Unit
Flame Rating All Color 0.75mm UL94   HB
Flame Rating All Color 1.5mm UL94   HB
Flame Rating All Color 3.0mm UL94   HB
UL Standard   Value Unit
UL FlameRating ALL0.75mm UL94   HB
UL FlameRating ALL 1.5mm UL94   HB
UL FlameRating ALL 3.0mm UL94   HB



Application





41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 1 41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 2



41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 6





Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 7 41H BK0677 Polyamide Pa 66 Aerospace Applications Heat Stability Pa66 Pellets 8

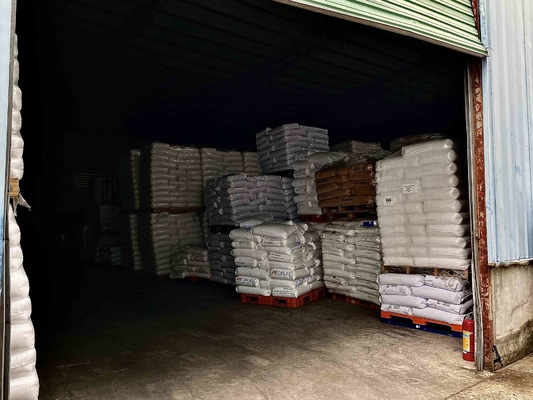

Warehouse:
