Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application

Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application

Product Details:

Place of Origin: Germany
Brand Name: Covestro (Bayer)
Certification: MSDS
Model Number: TPU 385SX
Document: Company color page PC..pdf

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD5.5-6KG
Packaging Details: 25 Kg/pack
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500T
Get Best Price Contact Now

Detail Information

Features: High Strength Color: Lucency
Material Shape: Pellets Process: Injection Molding
Application: 3C Parts E&EApplications Screen Packs Technical Applications Packing: 25 Kg/pack
Density: 1220 Kg/m³ Grade: Injection Grade
Port: ShenZhen/GuangZhou
Highlight:

Covestro 385SX TPU Raw Material

,

Oil Resistance TPU Raw Material

,

Covestro 385SX TPU Pellets

Product Description

Products Description















Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 0















TPU Covestro 385SX High Wear Resistance High Cold Resistance Oil Resistance Water Resistance Mold Resistance Automotive Parts Application Electronic And Electrical Parts Application Hose Application
The TPU 385SX has extremely high wear resistance and can withstand long-term use and wear in harsh environments. Its unique molecular structure enables it to effectively resist wear and tear during friction, prolonging the service life of the product ‌. Has good oil, water and mold resistance, suitable for a variety of harsh environment ‌. By changing the ratio of each reaction component of TPU, products with different hardness can be obtained. With the increase of hardness, its products still maintain good elasticity and wear resistance ‌. TPU products have outstanding bearing capacity, impact resistance and shock absorption performance, and are suitable for a variety of applications requiring high strength and impact resistance ‌. TPU has a low glass transition temperature and still maintains good elasticity, flexibility and other physical properties at minus 35 degrees Celsius, which is suitable for applications in low temperature environment ‌.



product feature

TPU
385SX
Product information
Part Marking Code >TPU<
Color NC

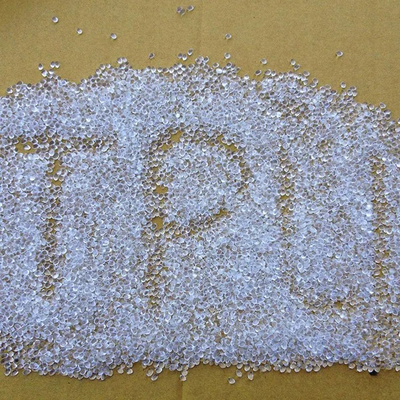

Material Shape Pellets
Process Injection molding
Features ·High strength
Application ·3C parts ·E&EApplications ·Screen packs ·Technical applications
Physical property Standard Value Unit
Density ISO 1183 1220 kg/m³
Hardness Standard Value Unit
Shore Hardness A ASTM D2240 89
Mechanical behavior Standard Value Unit
Tensile Strength 200mm/min DIN 53504 45.0 MPa
Tensile Strength 100%Strain 200mm/min DIN 53504 6.2 MPa
Tensile Strength 300%Strain 200mm/min DIN 53504 12.0 MPa
Elongation Break 200mm/min DIN 53504 600 %
Tearing Strength 500mm/min ISO 34 110 KN/m
Abrasion Resistance ISO 4649 45 mm³
Injection molding   Value Unit
Dry Temperature   110
Melt Temperature   185~205
Mould Temperature   20~40





Application





Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 1 Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 2



Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 6

Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 7



Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 8 Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 9

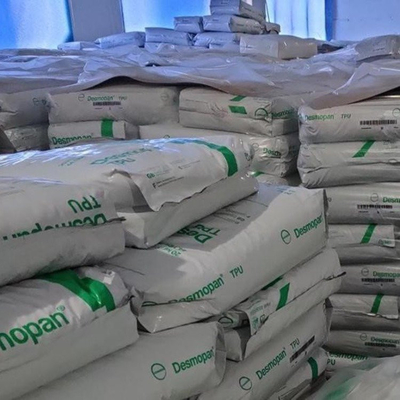

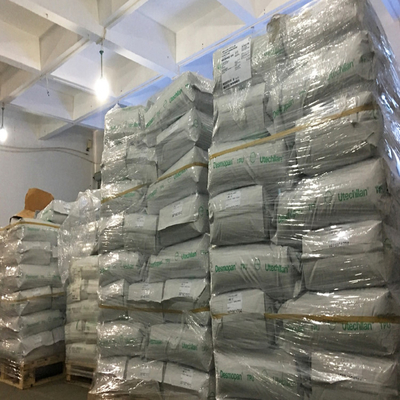

Warehouse:



Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 10 Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 11
Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 12 Covestro 385SX TPU Raw Material Oil Resistance Electrical Parts Application 13

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client





Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
