Product Details:

Place of Origin: Japan
Brand Name: Reach up to
Certification: MSDS
Model Number: PPS RS1340
Document: Company color page PC..pdf

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD3.5-4.5KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500T
Get Best Price Contact Now

Detail Information

Color: Natural Grade: Injection Molding Grade
Material Shape: Pellets Application: Automotive Parts
Packing: 25 Kg/pack Material Attribute: Food Contact Grade
Delivery Time: 5-14days Port: ShenZhen/GuangZhou,China
Highlight:

flame retardant other plastic raw materials

,

automotive parts other plastic raw materials

Product Description

Products Description








PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 0








PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide



Heat resistance: PPS RS1340 has excellent heat resistance, continuous use temperature up to 240 degrees.
Mechanical strength: It has high tensile strength (143MPa) and high bending strength (193MPa), making it ideal for manufacturing parts that need to withstand greater stress.
Electrical properties: PPS RS1340 has excellent electrical properties, maintaining stable dielectric properties and insulation resistance even at high temperatures.
Chemical resistance: It has good resistance to most chemicals and will not be easily corroded or dissolved.
Dimensional stability: PPS RS1340 has a low molding shrinkage rate and has excellent dimensional stability, ensuring that the size of the product changes little under different environmental conditions.
Flame retardant: UL94 V-0 flame retardant performance, suitable for applications with high fire safety requirements.
Processing performance: good fluidity, easy to form, forming almost no shrinkage hole bump, shorten the production cycle, improve production efficiency.
Environmental protection: non-toxic and harmless, in line with environmental protection directives such as RoHS, suitable for the market with strict environmental requirements.
PPS RS1340 with its excellent comprehensive performance, in electronic appliances, automotive industry, precision instruments and other fields to show a wide range of application potential and market value.

product feature

PPS
RS-1340
Product information
Other Certificates MSDS
Part Marking Code >PPS-GF40-FR<
Material Shape Pellets
Process Injection molding
FR V-0
Material Attribute 40%Glass Fiber Reinforced Flame retardant
specification ·UL
UL File NO E146413
Certificate U MSDS
Physical property Standard Value Unit
Density ASTM D792 1.66 g/cm³
Shrinkage Flow ASTM D995 0.3 %
Shrinkage xFlow ASTM D995 1.0 %
Water Absorption 23℃ 24hr ASTM D570 0.02 %
Hardness Standard Value Unit
Rockwell Hardness R(Scale)   122
Mechanical behavior Standard Value Unit
Tensile Strength Yield ASTM D638 1330 kg/cm²
Elongation Break ASTM D638 2 %
Flexural Strength ASTM D790 1850 kg/cm²
Flexural Modulus ASTM D790 97000 kg/cm²
Izod Notch Impact 23℃ 3.2mm ASTM D256 6.2 kg-cm/cm
Thermal Standard Value Unit
HDT 1.8MPa ASTM D648 260
Electrical properties Standard Value Unit
Surface Resistivity ASTM D257 1E16 Ω
Dielectric Strength ASTM D149 16 KV/mm
Dielectric Constant 1MHz ASTM D150 4
Flammability Standard Value Unit
Flame Rating BK 0.75~0.83mm UL94 V-0
UL Standard Value Unit
UL FlameRating BK 0.75~0.83mm UL94 V-0
RTI Elec BK 0.75~0.83mm UL 746B 130
RTI Imp BK 0.75~0.83mm UL746B 130
RTI Str BK 0.75~0.83mm UL746B 130

Application







PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 1 PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 2



PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 3

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 4Electronic appliances


It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 5Mechanical equipment


It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 6

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 7 PPS Japan up to RS1340 injection grade flame retardant grade high temperature resistance high rigidity high strength polyphenylene sulfide 8

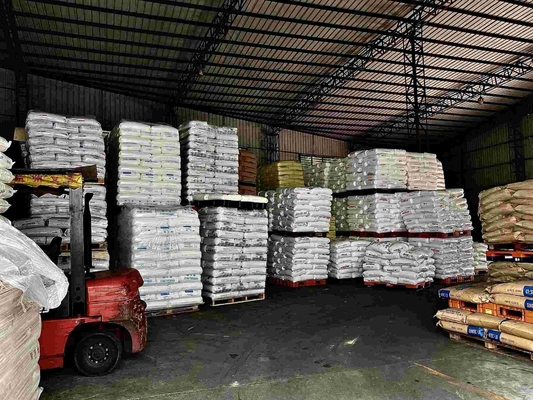

Warehouse:
