• PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide
  • PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide
  • PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide
  • PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide
  • PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide
  • PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide
PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide

Product Details:

Place of Origin: France
Brand Name: Solvay
Certification: MSDS
Model Number: PA A 1133 HS BK543
Document: Company color page PC..pdf

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD6-6.3KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500T
Get Best Price Contact Now

Detail Information

Product Name: PA A 1133 HS BK543 Color: Natural Color
Grade: Injection Molding Grade Shape: Pellets
Delivery Time: 5-14days Port: ShenZhen/GuangZhou,China
Application: Electronic And Electrical Components Packing: 25 Kg/pack
Highlight:

natural color other plastic raw materials

,

injection molding other plastic raw materials

Product Description

Products Description








PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 0








PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide




High strength: The material has excellent strength and rigidity to meet the needs of high-load applications such as automotive components.
Low water absorption: Its low water absorption characteristics allow it to maintain a stable size and performance in wet environments.
Creep resistance: Even under high temperature and high load conditions, it can effectively resist deformation and ensure the long-term stability of the product.
Chemical resistance: Good resistance to a variety of chemicals, suitable for harsh chemical environments.
Flame retardant: It has certain flame retardant performance and meets strict fire safety standards.
Processing performance: Good injection molding processing performance, easy to mass production and complex shape manufacturing.
Heat resistance: Maintains excellent mechanical properties over a wide temperature range.
Surface gloss: Excellent surface gloss, without additional spraying can obtain satisfactory appearance

product feature


A-1133 HS BK
543
Product information
Part Marking Code >PPA<
Material Shape Pellets
Process Injection molding
FR HB
specification ·UL
Features ·High strength ·Low water absorption ·Creep resistance
UL File NO. E95746
Certificate PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 1 PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 2
Physical property Standard Value Unit
Density ISO 1183 1.48 g/cm³
Shrinkage Flow 2.0mm ASTM D995 0.4 %
Shrinkage xFlow 2.0mm ASTM D995 0.8 %
Water Absorption 23℃24hr ASTM D570 0.21 %
Mechanical behavior Standard Value Unit
Tensile Modulus 23℃ ASTM D638 13100 MPa
Tensile Modulus 23℃ ISO 527 13400 MPa
Tensile Strength 23℃ ASTM D638 221 MPa
Tensile Strength 23℃ ISO 527 233 MPa
Elongation 23℃ ASTM D638 2.5 %
Elongation 23℃ ISO527 2.5 %
Poisson Ratio ASTM E132 0.41
Flexural Strength 23℃ ASTM D790 317 MPa
Flexural Strength 23℃ ISO 178 319 MPa
Flexural Modulus 23℃ ASTM D790 11400 MPa
Flexural Modulus 23℃ ISO 178 11600 MPa
Izod Notch Impact 23℃ ASTM D256 80 J/m
Izod Notch Impact 23℃ ISO 180 8.8 kJ/m²
Izod Un-notch Impact 23℃ ASTM D256 770 J/m
Izod Un-notch Impact 23℃ ISO 180 49 kJ/m²
Charpy Notch Impact 23℃ ISO 179 9.5 kJ/m²
Charpy Un-notch Impact 23℃ ISO 179 73 kJ/m²
Shearing Strength ASTM D790 101 MPa
Thermal Standard Value Unit
HDT Annealed 0.45MPa ASTM D648 297
HDT Annealed 1.8MPa ASTM D648 285
HDT Unannealed 1.8MPa ISO 75 280
Melting Temperature ASTM D3418 313
Melting Temperature ISO 11357 313
CLE Flow ASTM D696 2.4E-5 cm/cm/℃
CLE xFlow ASTM D696 5.5E-5 cm/cm/℃
Electrical properties Standard Value Unit
Volume Resistivity ASTM D257 1E15 Ω.cm
Volume Resistivity IEC60093 1E15 Ω.cm
Dielectric Strength ASTM D149 39 KV/mm
Dielectric Strength IEC 60243 39 KV/mm
Dielectric Constant 1KHz ASTM D150 4.4
Dielectric Constant 1MHz ASTM D150 4.2
Dissipation Factor 1KHz ASTM D150 0.005
Dissipation Factor 1MHz ASTM D150 0.017
Arc Resistance ASTM D495 140 S
CTI ASTM D3638 550 V


Application




PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 3 PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 4



PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 5

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 6Electronic appliances


It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 7Mechanical equipment


It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 8
Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 9 PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 10

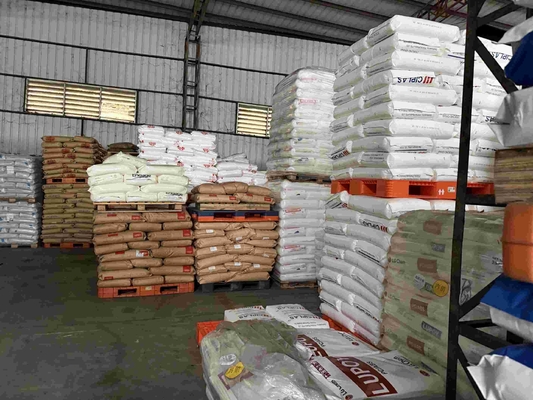

Warehouse:



PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 11 PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 12
PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 13 PPA US Solvay A-1133 HS BK543 creep resistant glass reinforced with 33% polyxylene amide 14
