PC APEC 2097 High-temperature Resistant, Performance, High Fluidity
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Korsunco, Germany |
| Certification: | MSDS |
| Model Number: | PC APEC 2097 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25KG |
|---|---|
| Price: | USD10.5-10.9KG |
| Packaging Details: | 25 kg/pack |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T |
| Supply Ability: | 500T |
|
Detail Information |
|||
| Melt Index 260℃5kg: | 18cm3/10min | Tensile Strength: | 50 MPa |
|---|---|---|---|
| Port: | ShenZhen/GuangZhou,China | Plastic Type: | Thermoplastic |
| Application: | Injection Molding | Material: | Alloy |
| Electrical Conductivity: | Non-conductive | Surface Finish: | Smooth |
| Chemical Resistance: | Excellent | ||
| Highlight: | PC APEC 2097 high-temperature resistant,PC APEC 2097 high fluidity,PC plastic raw material with warranty |
||
Product Description
Products Description
|
|
PC APEC 2097 High-temperature Resistant, Performance, High Fluidity |
product feature
| Innovative Plastics GELOY XP4025 ASA+PC(Asia Pacific) | |||
| Polycarbonate/ASA Alloy,Unreinforced | |||
| Innovative Plastics(GE Plastics) product description |
|||
| ASA+PC blend.Weatherable,injection grade.Available in a wide range of colors and is recommended for unpainted exterior applications. | |||
| Physical property | Rated value(metric) | Rated value(English) | Test method |
| Proportion Water absorption |
1.14 g/cc | 1.14 g/cc | ASTM D792 |
| 0.24% | 0.24% | ||
| @Time 86400 sec | @Time 24.0 hour | ASTM D570 | |
| Linear molding shrinkage, | 0.0050-0.0070 cm/cm | 0.0050-0.0070 in/in | |
| Flow | @Thickness 3.20 mm | @Thickness 0.126 in | Method |
| Linear molding shrinkage, | 0.0050-0.0070 cm/cm | 0.0050-0.0070 in/in | |
transverse Melt flow rate @ |
@Thickness 3.20 mm | @Thickness 0.126 in | Method |
| 18 g/10 min | 18 g/10 min | ||
| Load 5.00 kg,Temperature 260℃ | @Load 11.0 Ib,Temperature 500F | ASTM D1238 | |
| Mechanical behavior | Rated value(metric) | Rated value (English) | Test method |
| Rockwell hardness(R class) | 114 | 114 | ASTM D785 |
| Tensile strength(yield) | 59.0 MPa | 8560 psi | Type I,50 mm/min;ASTM D638 |
| Elongation(break) | 25% | 25% | Type I,50 mm/min;ASTM D638 |
| bending strength | 88.0 MPa | 12800 psi | 1.3 mm/min,50 mm span;ASTM |
| flexural modulus | 2.58 GPa | 374 ksi | 1.3 mm/min,50 mm span;ASTM |
| Impact strength of hanging beam | |||
gap |
1.70J/cm | 3.18 ft-lb/in | ASTM D256 |
| 0.640 J/cm | 1.20 ft-Ib/in | ||
| @Temperature -30.0℃ | @Temperature -22.0°F | ASTM D256 | |
Dart Drop,Total Energy |
33.0J | 24.3 ft-Ib | |
| @Temperature -30.0℃ | @Temperature -22.0F | ASTM D3763 | |
| 37.0J | 27.3 ft-Ib | ||
| @Temperature 23.0℃ | @Temperature 73.4°F | ASTM D3763 | |
| Hot property | Rated value(metric) | Rated value (English) | Test method |
| Linear thermal expansion | 72.0μm/m-℃ | 40.0 μin/in-F | |
| coefficient-flow | @Temperature -20.0-150℃ | @Temperature -4.00-302F | ASTME831 |
| Linear thermal expansion coeffi- | 72.0 μm/m-℃ | 40.0 μin/in-F | |
| cient,lateral flow | @Temperature -20.0-150℃ | @Temperature -4.00-302F | ASTM E831 |
| Thermal conductivity | 0.250 W/m-K | 1.74 BTU-in/hr-ft²-F | ASTM C177 |
| Thermal deformation temperature | 102℃ | 216F | |
| under load(0.46 MPa) | @Thickness 3.20 mm | @Thickness 0.126 in | unannealed;ASTM D648 |
| Thermal deformation temperature | 90.0℃ | 194F | |
| under load (1.8 MPa) | @Thickness 6.40 mm | @Thickness 0.252 in | unannealed;ASTM D648 |
| UL RTI | 50.0℃ | 122F | UL 746B |
| UL RTI Mechanical shock | 50.0℃ | 122F | UL 746B |
| UL RTI,no mechanical impact | 50.0℃ | 122F | UL 746B |
| Flammability(UL94) | HB @Thickness 1.47 mm |
HB @Thickness 0.0579 in |
UL94 |
| Optical performance | Rated value(metric) | Rated value (English) | Test method |
| glossiness | 90% | 90% | untextured,60 degrees;ASTM D5 |
Application
 |
|
|
Optical lighting
It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft. |
Electronic appliances
It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on. |
Mechanical equipment
It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields |
Physical Property Parameter
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
|
|

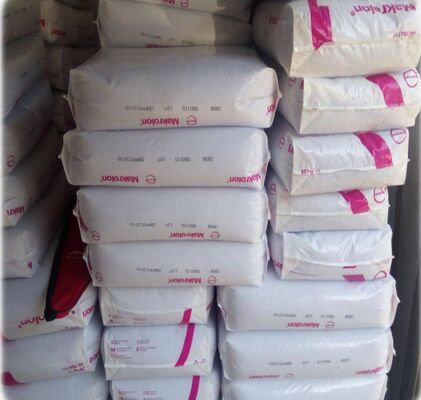

Warehouse:
|
|
|
|
FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client
| Application | Electronics electrical appliances mobile phones cars |
| Grade | Injection Grade,Extrusion Grade |
| OEM/ODM | Accepted |
Want to Know more details about this product
