Product Details:

Place of Origin: Germany
Brand Name: AKRO
Certification: MSDS
Model Number: PA6 B3GF50
Document: Company color page PC..pdf

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD1.3-1.5KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Product Name: PA6 B3GF50 Color: Natural Color
Material Shape: Pellets Grade: Injection Molding Grade
MOQ: 25KG Packing: 25 Kg/pack
Application: Cosmetic Application Type: 100% Virgin Material
Delivery Time: 7-15days Port: ShenZhen/GuangZhou,China
Highlight:

High Temperature Resistance PA6 Material

,

Auto Parts PA6 Material

,

Auto Parts Pa6 Gf50

Product Description



Products Description







High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 0























 PA6 Germany AKRO B3GF50 enhanced grade high temperature resistance nylon heat resistance solvent plus fiber 30% auto parts



product feature

PA6
B3 GK 50 natural(3690
Product information
Part Marking Code >PA6-G850c
Color NC
Material Shape Pellets
Process Injection mokding
FR HB
Material AtInbute 50%Glass Bead Fller
Features ·Good appearance ·Low warpag
Application Automotive appicotions +E&EAppkcations ·Cover ·Housing "Furniture
Physical property Standard Value Unit
Densty 23℃ SO 1183 1.54 g/cm
Shrinkage Flow SO 294 07 %
Shrinkage xFlow SO 294 08 %
Water Absorpton 23°C SO62 4.7 %
HumidityAbsorption 70℃62RH SO1110 15 %
Mechsnical behaMor Standard Value Unit
Tensile Modulus 10mm/min SO 527 5700 MPa
Tensile Strength Break Smm/min SO 527 75 MPa
Elongation Break 5mm/mn SO 527 4 %
Flexural Strength 2.0mm/min SO 178 135 MPa
Hesural Modulus 20mm/min SO 178 5200 MPa
Charpy Notch Impact 23℃leA SO 179 3 k/m²
Charpy Notch Impact -30C leA SO179 1 kJ/m²
Charpy Un-notch Impact 23C SO 179 42 kJ/m²
Charpy Un-notch Impact -30℃ SO 179 32 kJ/m²
Therms Standard Value Unit
HDT 18MPa SO75 75 C
HDT 0.4SMPa SO75 188
Melting Temperature DSC10K/min SO 11357 225 ℃
Fectricalproperties Standard Value Unit
Volume Fesistvity EC 60093 1E+15 Q.cm
Surface Resistwity EC 60093 1E+13 Ω
CTI SolutionA EC60112 500 V
FammabTty Standard Value Unit
Fame Rating 1.6mm UL94 HB
GWH 1.6mm EC 60695 650 C
BurningRate 1.00mm FMVSS 302 100 mmymin
njection mokding Value Unit
Dry Temperature 80 C
DryTime 00-4 hr
Water Content Control s01 %
Feedng Zone Temperature 60-80
Zonel Temperature 240-290
Zone2 Temperature 240-290 ℃
Zone3 Temperature 240-290 ℃
Zone4 Temperature 240-290 ℃
Nozzle Temperature 260-300 ℃
Melt Temperature 270-290 ℃
Mould Temperature 80-100 ℃
Injection Speed Moderate-Fast
Screw Spoed 8~15 m/min
Back Pressure 50-150 bar
Holding Pressure 300-800 bar

Application





High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 1 High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 2



High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 6

High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 7



Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 8 High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 9

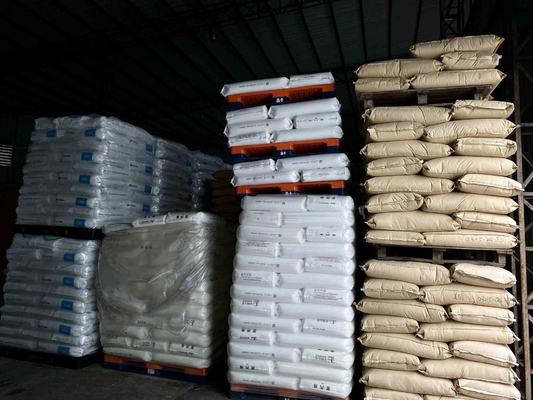

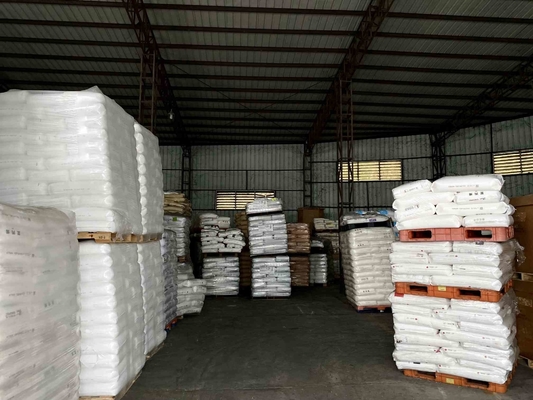

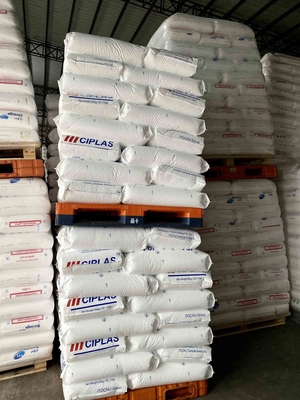

Warehouse:



High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 10 High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 11
High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 12 High Temperature Resistance PA6 Material Auto Parts Pa6 Gf50 Natural Color 13

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client
