Product Details:

Place of Origin: Switzerland
Brand Name: EMS
Certification: MSDS
Model Number: PA6 BG 50S

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD2-2.5KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Color: Natural Color Material Shape: Pellets
Grade: Injection Molding Grade MOQ: 1 Ton
Packing: 25 Kg/pack Application: Electrical Application
Type: 100% Virgin Material Delivery Time: 7-15days
Port: ShenZhen/GuangZhou,China
Highlight:

50 % Glass Fiber PA6 Material

,

Automotive parts PA6 Material

,

Automotive parts Pa6 50 Gf

Product Description



Products Description















50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 0

PA6 Swiss EMS BG-50S High strength 50% glass fiber reinforced industrial supplies for automotive applications



Excellent mechanical properties High impact resistance Good heat resistance Electrical insulation good chemical resistance self-wetting and wear resistance
A wide range of applications with self-extinguishing: suitable for electronic appliances and auto parts and other fields. In the field of electronic and electrical appliances can be used to manufacture connectors, reel spool, timer, cover circuit breaker, switch housing and so on; In the automotive field, it can be used for cooling fans, doorknobs, fuel tank caps, intake grilles, water tank covers, lamp holders, etc. It can also be used for industrial parts, such as chair seat, bicycle frame, skate sole seat, textile shuttle, pedal, pulley, etc

product feature

PA6
BG-50S
Product information
Other Certificates MSDS
Part Marking Code >PA6-GF50<
Material Shape Pellets
Process Injection molding
FR HB
Material Attribute 50%Glass Fiber Reinforced
specification ·RoHS ·UL
Features ·Good appearance
Application ·Automotive Interior Trim ·Automotive applications ·Automotive interior parts
·E&EApplications·Electrical devices
UL File NO. E53898
Certificate UL MSDS
Physical property Standard   Value Unit
Density ISO 1183   1580 kg/m³
Shrinkage Flow ISO 294   0.1 %
Shrinkage xFlow ISO 294   0.5 %
Water Absorption ISO 62   5 %
Humidity Absorption ISO 62   1.5 %
Thickness INTERNAL METHOD   0.8 mm
Hardness Standard Dry Wet Unit
Ball Indentation Hardness ISO 2039 270 155 MPa
Mechanical behavior Standard Dry Wet Unit
Tensile Modulus ISO527 17500 11500 MPa
Tensile Strength Break ISO 527 245 165 MPa
Elongation Break ISO 527 3 6 %
Charpy Notch Impact 23℃ ISO 179 15 25 kJ/m²
Charpy Notch Impact -30℃ ISO 179 11 12 kJ/m²
Charpy Un-notch Impact 23℃ ISO 179 90 95 kJ/m²
Charpy Un-notch Impact -30℃ ISO 179 85 90 kJ/m²
Thermal Standard   Value Unit
HDT 1.8MPa ISO 75   210
HDT 8.0MPa ISO75   170
Melting Temperature 10℃/min ISO 11357   222
CLE Flow ISO 11359   1.5E-5 m/m/K
CLE xFlow ISO 11359   1E-4 m/m/K
Service Temperature Maximum Long Time ISO 2578   90~140
Service Temperature Maximum Short Time INTERNAL METHOD   160
Electrical properties Standard Dry Wet Unit
Volume Resistivity IEC 60093 1E+12 1E+12 Ω.m
Surface Resistivity IEC 60093   1E+12 Ω
Dielectric Strength IEC 60243 40 37 KV/mm
CTI IEC 60112   575 V
Flammability Standard   Value Unit
Flame Rating All Color 0.75mm UL94   HB
Flame Rating All Color 1.5mm UL94   HB
Flame Rating All Color 3.0mm UL94   HB
UL Standard   Value Unit
UL FlameRating ALL 0.75mm UL94   HB
UL FlameRating ALL1.5mm UL94   HB
UL FlameRating ALL 3.0mm UL94   HB
HWI ALL 0.75mm UL 746A   3 PLC

Application





50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 1 50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 2



50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 6







Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 7 50 % Glass Fiber Reinforced PA6 Material Automotive Parts Pa6 50 Gf 8

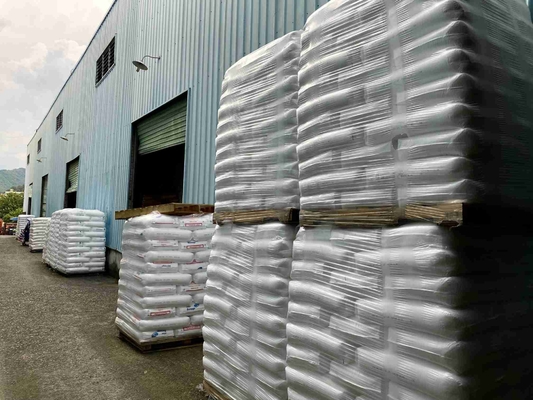

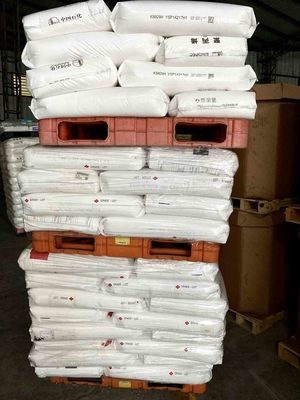

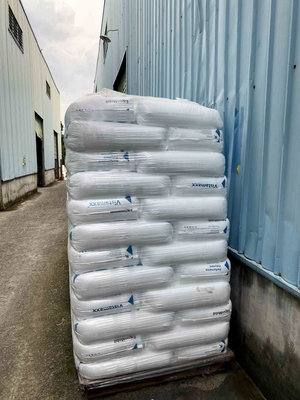

Warehouse:
