Product Details:

Place of Origin: France
Brand Name: Solvay
Certification: MSDS
Model Number: PA6 C218V30 BK

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD1.5-2.3KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Color: Natural Color Material Shape: Pellets
Grade: Injection Molding Grade MOQ: 1 Ton
Packing: 25 Kg/pack Application: Electrical Application
Delivery Time: 7-15days Port: ShenZhen/GuangZhou,China
Highlight:

Anti Aging Nylon 6 Raw Material

,

Conductive Nylon 6 Raw Material

,

Conductive Nylon Raw Material

Product Description



Products Description















Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 0

PA6 Solvay C218V30 BK Black 30% plus fiber anti-aging conductive grade high strength single nylon raw material



Enhanced performance Good thermal stability Good dimensional stability Good chemical resistance Wide range of applications: The automotive field of electronic and electrical appliances can also be used in general applications such as lighting fixtures, sports equipment, home appliance components, as well as the manufacture of bearings, circular gears, cams, oil pipelines, pistons, ropes, transmission belts, textile machinery industrial equipment parts, building materials and daily necessities and packaging films, showing its wide applicability

product feature

PA6
C218 V30
Product information
Part Marking Code >PA6-GF30<
Color NC BK
Material Shape Pellets
FR HB
Material Attribute 30%Glass Fiber Reinforced Heat stabilized grade
specification ·UL

UL File NO. E44716
Certificate
Physical property Standard   Value Unit
Density ISO 1183   1.35 g/cm³
Shrinkage Flow INTERNAL METHOD   0.35 %
Shrinkage xFlow INTERNAL METHOD   0.65 %
Water Absorption 23℃24hr ISO 62   0.95 %
Mechanical behavior Standard Dry Wet Unit
Tensile Modulus Type 1A ISO 527 9600 6200 MPa
Tensile Strength Break Type 1A ISO 527 190 110 MPa
Elongation Break Type 1A ISO 527 4 5 %
Flexural Strength ISO 178 240 145 MPa
Flexural Modulus ISO 178 8400 4900 MPa
Izod Notch Impact Type A ISO 180 14 24 kJ/m²
Charpy Notch Impact leA ISO 179 15 31.5 kJ/m²
Charpy Un-notch Impact ISO 179 100 108 kJ/m²
Thermal Standard   Value Unit
HDT 1.8MPa ISO 75   205
Melting Temperature ISO 11357   222
CLE 23~85℃ ISO 11359   3.2E-5 cm/cm/℃
Electrical properties Standard Dry Wet Unit
Volume Resistivity IEC 60093 1E15 1E11 Ω.cm
Surface Resistivity IEC 60093 1E13 1E11 Ω
Dielectric Strength IEC 60243   22 KV/mm
Dielectric Constant IEC 60250 3.8 4.5
Dissipation Factor IEC 60250 0.02 0.09
CTI Solution A IEC 60112 550 475 V
Flammability Standard   Value Unit
Flame Rating NC BK 0.75mm UL94   HB
Flame Rating NC BK1.4mm UL94   HB
Flame Rating NC BK 3.0mm UL94   HB
Flame Rating NC BK 6.0mm UL94   HB
UL Standard   Value Unit
UL FlameRating NC BK 0.75mm UL94   HB
UL FlameRating NC BK 1.4mm UL94   HB
UL FlameRating NC BK 3.0mm UL94   HB
UL FlameRating NC BK 6.0mm UL94   HB
HWI NC BK 0.75mm UL746A   4 PLC
HWI NC BK 1.4mm UL746A   4 PLC
HWI NC BK 3.0mm UL746A   3 PLC
HWI NC BK 6.0mm UL746A   3 PLC
HAI NC BK 0.75mm UL746A   0 PLC
HAI NC BK 1.4mm UL 746A   0 PLC
HAI NC BK 3.0mm UL746A   0 PLC
HAI NC BK 6.0mm UL 746A   0 PLC

Application





Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 1 Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 2



Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 6







Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 7 Anti Aging Nylon 6 Raw Material Conductive Nylon Raw Material Natural Color 8

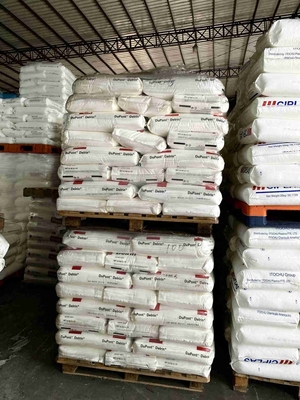

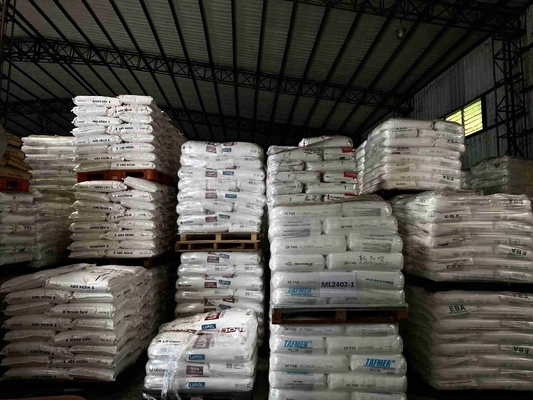

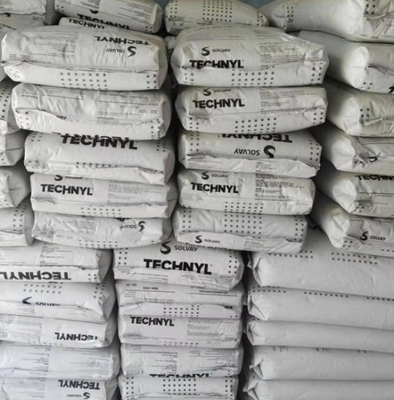

Warehouse:
