• Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material
  • Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material
  • Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material
  • Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material
  • Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material
  • Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material
Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material

Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material

Product Details:

Place of Origin: America
Brand Name: Basic Innovative plastic
Certification: MSDS
Model Number: PA6 PX08322 BK

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD3.5-4.5KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Material: PA6 PX08322 BK Material Shape: Pellets
Grade: Injection Molding Grade Packing: 25 Kg/pack
Application: Electrical Application Delivery Time: 7-15days
Port: ShenZhen/GuangZhou,China Color: Natural Color
Highlight:

Polyamide Nylon Pa6

,

Polyamide Nylon Pa6

,

Hydrolytic Polyamide Raw Material

Product Description



Products Description















Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 0

PA6 Basic Innovative plastic (USA) PX08322 BK wear-resistant high-strength hydrolytic polyamide plastic raw material



Widely used in the automotive field: can be used to manufacture automotive engine peripheral components, such as intake manifold, hood cover, as well as various oil pipelines, pistons and so on. Industrial equipment: suitable for thrusters, screws, nuts, gaskets, high pressure seals, oil resistant gaskets, shells, hoses, cable shears, shears, electromagnetic distribution seats, cold storage equipment, gaskets, bearing cages, etc. Daily and other fields: can be used for textile machinery industrial equipment spare parts, but also for household appliances, electronic devices, construction, sports and leisure, household goods, packaging, etc

product feature

PA6
PX08322
Product information
Part Marking Code >PA6-MD-FR<
Material Shape Pellets
Process Injection molding
FR V-0
Material Attribute Mineral Filler Flame retardant Thermally conductive grade
specification ·UL
Additives Flame Retardant Agent
UL File NO. E207780
Certificate W
Physical property Standard Value Unit
Density ASTM D792 1.53 g/cm³
Shrinkage Flow 24hr ASTM D955 0.5 %
Shrinkage xFlow 24hr ASTM D955 0.45 %
Mechanical behavior Standard Value Unit
Tensile Modulus 50mm/min ASTM D638 11790 MPa
Tensile Strength Break 5mm/min Type I ASTM D638 54 MPa
Elongation Break 5mm/min Type I ASTM D638 0.6 %
Flexural Strength Break 1.3mm/min ASTM D790 82 MPa
Flexural Modulus 1.3mm/min ASTM D790 11700 MPa
Izod Notch Impact 23℃ ASTM D256 17 J/m
Izod Un-notch Impact 23℃ ASTM D4812 88 J/m
Thermal Standard Value Unit
HDT Unannealed 1.8MPa 3.2mm ASTM D648 180
CLE Flow-40.0~40℃ ASTM E831 2.15E+1 cm/cm/℃
CLE xFlow -40.0~40℃ ASTM E831 3.54E+1 cm/cm/℃
Heat Conductivity Coefficient ASTM E1530 2.3 W/(m · ℃)
Flammability Standard Value Unit
Flame Rating BK GY 1.2mm UL94 V-0
Flame Rating BK GY 3.0mm UL94 V-0
GWIT 1.0mm IEC 60695 825
UL Standard Value Unit
UL FlameRating BK GY 1.2mm UL94 V-0
UL FlameRating BK GY 3.0mm UL94 V-0
HWI BK GY 1.2mm UL746A 0 PLC
HWI BK GY3.0mm UL 746A 0 PLC
HAI BK GY 1.2mm UL746A 0 PLC
HAI BK GY 3.0mm UL746A 0 PLC
RTI Elec BK GY 1.0mm UL746B 140
RTI Elec BK GY 1.2mm UL746B 140
RTI Elec BK GY 3.0mm UL746B 140
RTI Imp BK GY 1.0mm UL 746B 120
RTI Imp BK GY 1.2mm UL746B 120
RTI Imp BK GY 3.0mm UL 746B 120
RTI Str BK GY 1.0mm UL 746B 140
RTI Str BK GY 1.2mm UL746B 140
RTI Str BK GY 3.0mm UL746B 140
Comparative Tracking Index IEC 60112 0 PLC
GWFI 1.0mm IEC 60695-2-12 960
GWIT 1.0mm IEC 60695-2-13 825
Injection molding   Value Unit
Dry Temperature   80~90

Application





Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 1 Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 2



Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 6







Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 7 Wear Resistant Polyamide Nylon Pa6 High Strength Hydrolytic Polyamide Raw Material 8

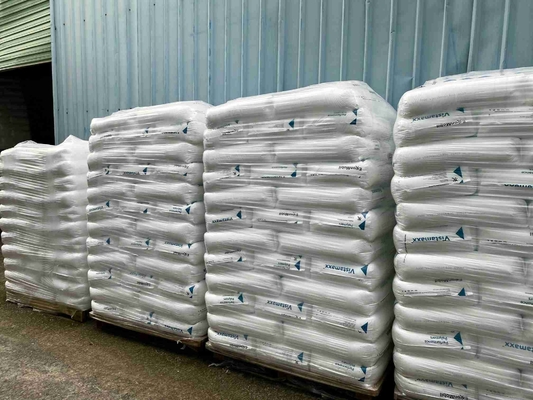

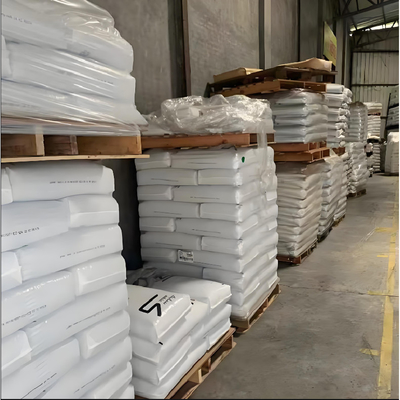

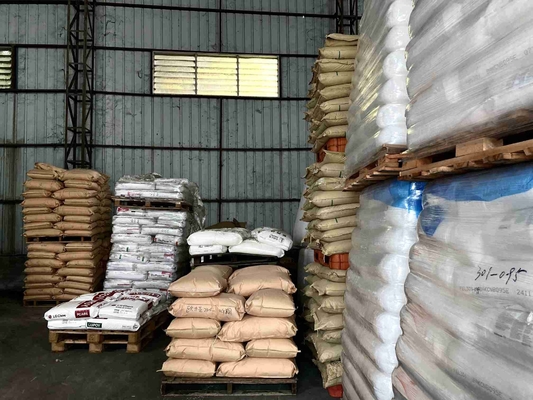

Warehouse:
