Product Details:

Place of Origin: Germany
Brand Name: DOMO
Certification: MSDS
Model Number: PA6 6G30

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD1-1.4KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Material: PA6 6G30 Material Shape: Pellets
Packing: 25 Kg/pack Application: Injection Molding
Delivery Time: 7-15days Port: ShenZhen/GuangZhou,China
Color: Natural Color
Highlight:

DOMO 6G30UV1 Nylon 6 Raw Material

,

Anti UV Pa 6 Gf 30

,

DOMO 6G30UV1 Polyamide Nylon Pa6

Product Description



Products Description















DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 0

PA6 Germany DOMO 6G30UV1 anti-UV 30% glass fiber reinforced automotive parts industrial supplies



PA6 6G30 is widely used in the automotive industry, using its good mechanical strength, wear resistance, oil resistance, self-lubrication and other characteristics, can manufacture a variety of bearings, gears, pulleys, oil pipelines, oil storage, oil resistance gaskets, support frame, wheel cover, deflector, fan, air filter housing, radiator water chamber, brake tube, engine cover, door handle and so on. It can meet the requirements of automotive parts to withstand high load and impact, while having lightweight and corrosion resistance characteristics, improving the service life and reliability of parts. Industrial products that meet the food contact standard PA6 6G30 models (such as DOMAMID®6G30FC) can be used to manufacture containers, packaging films, etc. in contact with food, with a certain degree of safety and applicability

product feature

PA6
6G30
Product information
Part Marking Code >PA6-GF30<
Material Shape Pellets
Process Injection molding
FR HB
Material Attribute 30%Glass Fiber Reinforced Injection grade
specification ·UL
UL File NO. E170540
Certificate DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 1
Physical property Standard Value Unit
Density ISO1183 1.36 g/cm³
Shrinkage Flow 23℃72hr 50RH ISO 294 0.3~0.5 %
Shrinkage xFlow 23℃72hr 50RH ISO 294 0.8~1 %
Water Absorption 23℃ Saturation ISO 62 7 %
Humidity Absorption 23℃50RH ISO 62 2 %
Melt Index 275℃5kg ISO 1133 45 cm3/10min
Viscosity Number 96%H₂SO₄ ISO 307 145 cm³/g
Hardness Standard Value Unit
Rockwell Hardness ISO 2039 122
Mechanical behavior Standard Dry Wet Unit
Tensile Modulus 1.0mm/min ISO527 9500 6000 MPa
Tensile Strength Break 5mm/min ISO 527 180 110 MPa
Elongation Break 5mm/min ISO 527 3.5 6 %
Flexural Strength 2.0mm/min ISO 178 270 160 MPa
Flexural Modulus 2.0mm/min ISO 178 8500 5000 MPa
Izod Notch Impact 23℃ Type A ISO 180 15 25 kJ/m²
Izod Un-notch Impact 23℃ ISO 180 80 90 kJ/m²
Charpy Notch Impact 23℃1eA ISO 179 15 25 kJ/m²
Charpy Notch Impact -30℃ leA ISO 179 11 11 kJ/m²
Charpy Un-notch Impact 23°℃ ISO 179 90 105 kJ/m²
Charpy Un-notch Impact -30℃ ISO 179 75 75 kJ/m²
Thermal Standard Value Unit
HDT 0.45MPa ISO 75 220
HDT 1.8MPa ISO 75 200
Vicat Softening Temperature 50℃/hr 50N ISO 306 215
Melting Temperature 10°℃/min ISO 11357 221
Electrical properties Standard Value Unit
Volume Resistivity IEC 62631 1E+13 Ω.m
Surface Resistivity IEC 62631-3-1 1E+13 Ω
CTI Solution A IEC 60112 500 V
Flammability Standard Value Unit
Flame Rating All Color 0.75mm UL94 HB
Flame Rating All Color 1.5mm UL94 HB
Flame Rating All Color 3.0mm UL94 HB
GWFI 1~3mm IEC 60695 650
Burning Rate 1.00mm FMVSS 302 100 mm/min
UL Standard Value Unit
UL FlameRating ALL0.75mm UL94 HB
UL FlameRating ALL1.5mm UL94 HB
UL FlameRating ALL3.0mm UL94 HB
HWI ALL0.75mm UL746A 5 PLC
HWI ALL 1.5mm UL746A 4 PLC

Application





DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 2 DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 3



DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 4

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 5Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 6Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 7







Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 8 DOMO 6G30UV1 Anti UV Nylon 6 Raw Material Automotive Parts Pa 6 Gf 30 9

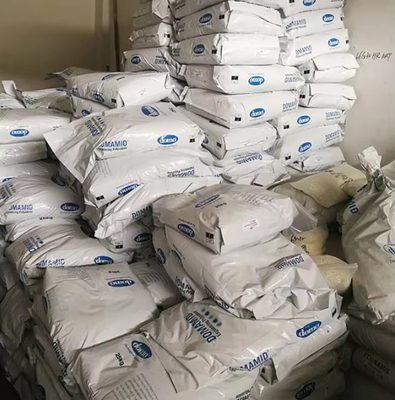

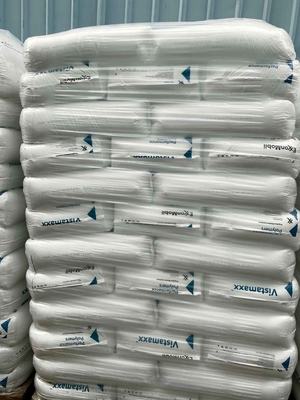

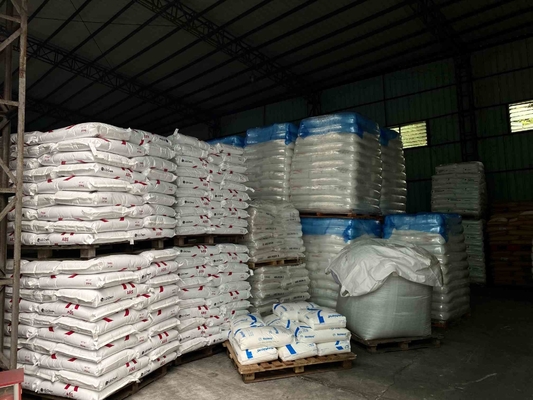

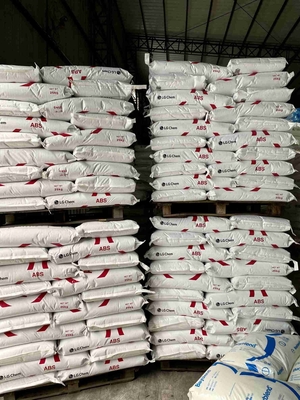

Warehouse:
