Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30

Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30

Product Details:

Place of Origin: America
Brand Name: Celanese
Certification: Ocean freight appraisal report
Model Number: PA6 B3 V0 BK9005

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD2.5-3.5KG
Packaging Details: 25KG PE Bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500Tons
Get Best Price Contact Now

Detail Information

Type: 100% Virgin Material Delivery Time: 7-15days
Port: ShenZhen/GuangZhou,China Antioxidants: Polyphenols
Size: 16 Fl Oz Ingredients: 100% Pomegranate Juice
Chemical Resistance: Excellent Resistance To Acids, Bases, And Organic Solvents Color: Black
Application: Injection Molding
Highlight:

Anti UV PA6 Material

,

Flame Retardant PA6 Material

,

Electronics Polyamide Nylon Pa6

Product Description



Products Description















Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 0















 PA6 United States Celanes B3 GF30 V0 BK9005 Anti-UV aging flame retardant electronic appliances





Application in the electrical field: can be used to manufacture high temperature electrical socket parts, electrical parts, connectors, reel spool, timer, cover circuit breaker, switch housing, socket, connector, washer, etc. Its good electrical insulation and fire performance can ensure the safe operation of electrical equipment.
Automotive industry: Suitable for cooling fans, doorknobs, fuel tank caps, intake grilles, water tank cover, lamp holders, oil filters, gear shifters and other automotive parts. The high strength, heat resistance and cold resistance of the material can adapt to the requirements of the car in different environments.
Industrial parts: can manufacture chair seat, bicycle frame, skate sole seat, textile shuttle, pedal, pulley, power tools and other industrial parts. Its wear resistance, high strength and other properties ensure the stability and reliability of industrial parts in the long-term use process.
Other fields: It can also be used in power tools, shields, blades, gears, machine tool accessories, sports equipment, toy products, cable ties, etc. A variety of excellent properties of materials can meet the requirements of product quality and performance in these fields.

product feature

PA6
B3 VO BK 9005N
Product information
Part Marking Code >PA6-FR(30)<
Color BK
Material Shape Pellets
Process Injection molding
FR V-0
Material Attribute Non Halogen Injection grade
specification ·UL·UL-746C F1
Features ·Non-red phosphorus
Application ·Automotive applications·E&EApplications·Home Appliances Applications
Additives Flame Retardant Agent
UL File NO. E331274
Certificate Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 1 Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 2
Physical property Standard Value Unit
Density ISO 1183 1160 kg/m³
Shrinkage Flow ISO 294 1.1~1.5 %
Shrinkage xFlow ISO 294 1.1~1.5 %
Water Absorption 23℃ Saturation ISO 62 7.5 %
Humidity Absorption 23℃50RH ISO 62 2 %
Viscosity Number H₂SO₄ ISO 307 145
Hardness Standard Value Unit
Ball Indentation Hardness 30s ISO 2039 135 MPa
Mechanical behavior Standard Value Unit
Tensile Modulus ISO 527 3200 MPa
Tensile Strength Yield 50mm/min ISO 527 70 MPa
Elongation Break 50mm/min ISO 527 3.2 %
Charpy Notch Impact 23℃ 1eA ISO 179 3 kJ/m²
Charpy Notch Impact -30℃ leA ISO 179 2.5 kJ/m²
Charpy Un-notch Impact 23℃ ISO 179 40 kJ/m²
Charpy Un-notch Impact -30℃ ISO 179 35 kJ/m²
Thermal Standard Value Unit
HDT 1.8MPa ISO 75 80
HDT 0.45MPa ISO 75 185
Melting Temperature ISO 3146 225
Service Temperature Continuous IEC60216 125
Electrical properties Standard Value Unit
Volume Resistivity IEC 60093 1E+13 2.m
CTI IEC60112 600
Flammability Standard Value Unit
Flame Rating BK 0.38mm UL94 V-0
Flame Rating BK 0.75mm UL94 V-0
Flame Rating BK1.5mm UL94 V-0
Flame Rating BK 3.0mm UL94 V-0
UL Standard Value Unit
Outdoor Suitability UL-746C f1
UL FlameRating BK 0.38mm UL94 V-0
UL FlameRating BK 0.75mm UL94 V-0
UL FlameRating BK 1.5mm UL94 V-0
UL FlameRating BK 3.0mm UL94 V-0
HWI BK0.75mm UL 746A 4 PLC
HWI BK1.5mm UL746A 3 PLC
HWI BK 3.0mm UL746A 2 PLC



Application





Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 3 Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 4



Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 5

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 6Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 7Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 8



Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 9 Anti UV PA6 Material Flame Retardant Electronics Polyamide Nylon Pa6 GF30 10

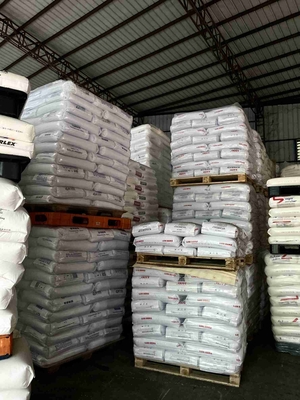

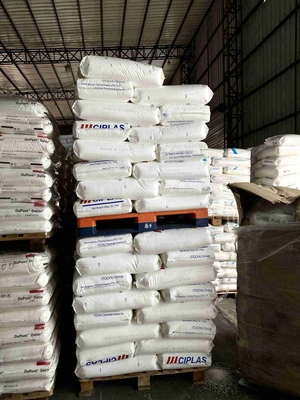

Warehouse:
