High Toughness PA66 Polyamide Raw Material Industrial Applications

High Toughness PA66 Polyamide Raw Material Industrial Applications

Product Details:

Place of Origin: America
Brand Name: Dupont
Certification: MSDS
Model Number: PA66 113GH BK001

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD3-4KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Color: Black Natural Color Material Shape: Pellets
Grade: Injection Molding Grade Packing: 25 Kg/pack
Delivery Time: 7-15days Port: ShenZhen/GuangZhou,China
Highlight:

High Toughness Polyamide Raw Material

,

PA66 Polyamide Raw Material

,

PA66 Nylon Raw Material

Product Description



Products Description















High Toughness PA66 Polyamide Raw Material Industrial Applications 0















PA66 US TEKNOR APEX 113GH BK001 injection grade high toughness wear resistance impact industrial applications



High rigidity and strength: PA66 113GH BK001 has excellent rigidity and strength, making it ideal for applications that need to withstand high loads and stresses.
Good machinability: This material is easy to process and can be processed in a variety of ways such as injection molding, which improves production efficiency.
Thermal stability: PA66 113GH BK001 has good thermal stability and is able to maintain its physical properties at higher temperatures, which is particularly important for components operating in harsh environments.
Good toughness: Even at low temperatures, PA66 113GH BK001 exhibits good toughness, which makes it ideal for making parts that require impact resistance.
Wide range of applications: PA66 113GH BK001 is not only suitable for the automotive industry, but also for instrument casings and other products requiring impact resistance and high strength requirements

product feature

PA66
113 GH

Product information


Part Marking Code
Color
Material Shape
Process
FR
Material Attribute
specification





>PA66-GF13<
NC BK
Pellets
Injection molding
HB
13%Glass Fiber Reinforced Heat stabilized grade
·UL
Features


Automotive Specifications
·Dimensional stability·High stiffness ·High strength·High tensile strength
·GM GMP.PA66.020 Color:Black ·GM GMP.PA66.020 Color:Natural
·GM GMW3038P-PA66-GF15H Color:Black
·CHRYSLER MS-DB-41 CPN2239 Color:BK001 Black
·CHRYSLER MS-DB-41 CPN3794 Color:Non-matched Color
·CHRYSLER MS-DB-41 CPN4061 Color:100%Color Match ·FORD ESA-M4D349-A
Additives Heat Stabilizer
UL File NO. E90654
Certificate High Toughness PA66 Polyamide Raw Material Industrial Applications 1 High Toughness PA66 Polyamide Raw Material Industrial Applications 2
Physical property Standard Value Unit
Density ISO 1183 1.22 g/cm³
Shrinkage Flow ISO 2577 0.40~0.70 %
Mechanical behavior Standard Value Unit
Tensile Strength ISO 527 114 MPa
Elongation Break ISO 527 3.0 %
Flexural Strength ISO 178 170 MPa
Flexural Modulus ISO 178 4650 MPa
Izod Notch Impact ISO 180 3.0 kJ/m²
Thermal Standard Value Unit
HDT Unannealed 1.8MPa ISO 75 215
Melting Temperature INTERNAL METHOD 257
Electrical properties Standard Value Unit
Volume Resistivity ASTM D257 1E+15 Ω.cm
Dielectric Strength 3.0mm ASTM D149 18 KV/mm
CTI UL746 600 V
Flammability Standard Value Unit
Flame Rating All Color 0.81mm UL94 HB
Flame Rating All Color 1.5mm UL94 HB
Flame Rating All Color 3.0mm UL94 HB
Limiting Oxygen Index ASTM D2863 25 %
UL Standard Value Unit
UL FlameRating ALL0.81mm UL94 HB
UL FlameRating ALL 1.5mm UL94 HB
UL FlameRating ALL 3.0mm UL94 HB
HWI ALL 0.81mm UL746A 3 PLC
HWI ALL1.5mm UL 746A 3 PLC
HWI ALL 3.0mm UL746A 3 PLC
HAI ALL0.81mm UL746A 0 PLC
HAI ALL1.5mm UL746A 0 PLC
HAI ALL 3.0mm UL746A 0 PLC
RTI Elec ALL 0.81mm UL746B 115
RTI Elec ALL 1.5mm UL 746B 115
RTI Elec ALL 3.0mm UL746B 115
RTI Imp ALL 0.81mm UL746B 75
RTI Imp ALL1.5mm UL746B 75



Application





High Toughness PA66 Polyamide Raw Material Industrial Applications 3 High Toughness PA66 Polyamide Raw Material Industrial Applications 4



High Toughness PA66 Polyamide Raw Material Industrial Applications 5

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

High Toughness PA66 Polyamide Raw Material Industrial Applications 6Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

High Toughness PA66 Polyamide Raw Material Industrial Applications 7Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

High Toughness PA66 Polyamide Raw Material Industrial Applications 8





Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
High Toughness PA66 Polyamide Raw Material Industrial Applications 9 High Toughness PA66 Polyamide Raw Material Industrial Applications 10

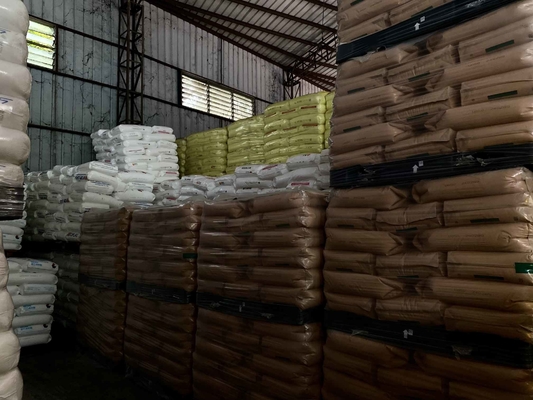

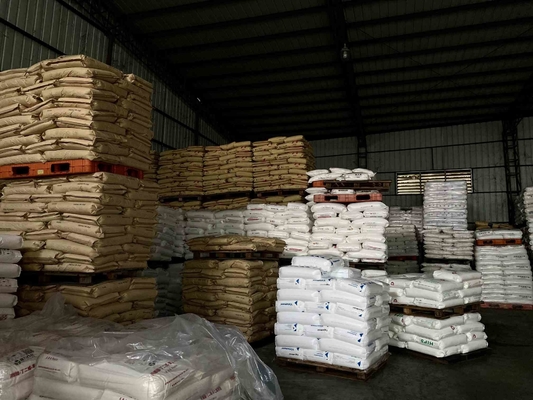

Warehouse:



High Toughness PA66 Polyamide Raw Material Industrial Applications 11 High Toughness PA66 Polyamide Raw Material Industrial Applications 12
High Toughness PA66 Polyamide Raw Material Industrial Applications 13 High Toughness PA66 Polyamide Raw Material Industrial Applications 14

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client





Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted











Want to Know more details about this product
I am interested in High Toughness PA66 Polyamide Raw Material Industrial Applications could you send me more details such as type, size, quantity, material, etc.
Thanks!
Waiting for your reply.
