Product Details:

Place of Origin: America
Brand Name: Invista
Certification: MSDS
Model Number: PA66 U4820L

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD2-2.7KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Material: PA66 U4820L Color: Natural Color
Grade: Injection Molding Grade Packing: 25 Kg/pack
Delivery Time: 7-15days Port: ShenZhen/GuangZhou,China
Ingredient: 100% Virgin Material Application: Automotive Application
Highlight:

Invista U4820L PA66 Material

,

Household Appliances PA66 Material

,

Household Appliances Pa66 Polyamide

Product Description



Products Description















Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 0















PA66 United States Invista U4820L Release Lubrication Stable General Household Appliances Electrical Automotive Application Nylon



Easy processing: Suitable for composite, injection molding and extrusion product applications.
Good color and physical properties retention rate: suitable for applications where good color and physical properties need to be maintained.
Low moisture absorption rate: helps to reduce the size change and performance fluctuations caused by moisture absorption, improve the dimensional stability and consistency of the product.
No addition of the original slice: means that the material is pure, there are no additional additives may bring potential risks or contamination.
Hydrolysis resistance: In applications such as automotive cooling systems, hydrolysis resistance is an important performance index.
High pressure and creep resistance: Suitable for applications requiring high pressure and creep resistance.
Heat shock resistance: can maintain stable performance in the case of rapid temperature changes.

product feature

PA66
U4820L NC01
Product information
Other Certificates MSDS
Part Marking Code >PA66<
Color NC
Material Shape Pellets
Process Injection molding Extrusion molding
Viscosity Medium viscosity
FR V-2
specification ·EU 2011/65/EC ·RoHS ·UL
Features ·Good mould release ·Short cycle time
·Good processability · Internal lubrication
·External lubrication ·G
·Lubricated
eneral purpose grade
Application ·General purpose ·Extrusion applications · Injection molding applications
Additives Lubricant
UL File NO. Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 1E333734
Certificate Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 2 Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 3 Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 4
Physical property Standard Value Unit
Density ISO1183 1.14 g/cm³
Shrinkage Flow 2.0mm ISO 294 1.5 %
Shrinkage xFlow 2.0mm ISO 294 1.8 %
Water Absorption 24hr ISO 62 1.8 %
Water Absorption 50RH Equilibrium ISO 62 2.6 %
Relative Viscosity Formic Acid Nominal ASTM D789 48
Relative Viscosity 1%in Sulfuric Acid Nominal INTERNAL METHOD 2.7
Viscosity Number 0.5%H₂SO₄Nominal ISO 307 150 mL/g
Viscosity Number 0.5%in formic acid Nominal ISO 307 137 mL/g
Mechanical behavior Standard Dry Wet Unit
Tensile Modulus ISO 527 3200 1180 MPa
Tensile Strength Yield ISO 527 82 49 MPa
Elongation Yield ISO 527 4.2 25 %
Elongation Break ISO 527 35 50 %
Flexural Strength ISO 178 95 33 MPa
Flexural Modulus ISO 178 2900 1100 MPa
Izod Notch Impact 23℃ ISO 180 5.4 12 kJ/m²
Charpy Notch Impact 23℃ ISO 179 5.5 15 kJ/m²
Charpy Notch Impact -30℃ ISO 179 4.3 5.2 kJ/m²
Charpy Un-notch Impact 23℃ ISO 179 NB NB kJ/m²
Charpy Un-notch Impact -30℃ ISO 179 NB NB kJ/m²
Thermal Standard Value Unit
HDT 0.45MPa ISO75 204
HDT 1.8MPa ISO 75 66
Melting Temperature 10℃/min ISO 11357 261
CLE Flow 2.0mm 23~55℃ ISO 11359 8E-5 cm/cm/℃
CLE xFlow 2.0mm 23~55℃ ISO 11359 8E-5 cm/cm/℃
Electrical properties Standard Value Unit
Volume Resistivity 2.0mm IEC 60093 2E+14 Ω.cm
Dielectric Strength 1.0mm UL 746 18 KV/mm
CTI 3.0mm IEC 60112 600 V
Flammability Standard Value Unit
Flame Rating NC BK0.40mm UL94 V-2
Flame Rating NC BK 0.71mm UL94 V-2
Flame Rating All Color 1.5mm UL94 V-2
Flame Rating All Color 3.0mm UL94 V-2



Application





Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 5 Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 6



Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 7

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 8Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 9Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 10





Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 11 Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 12

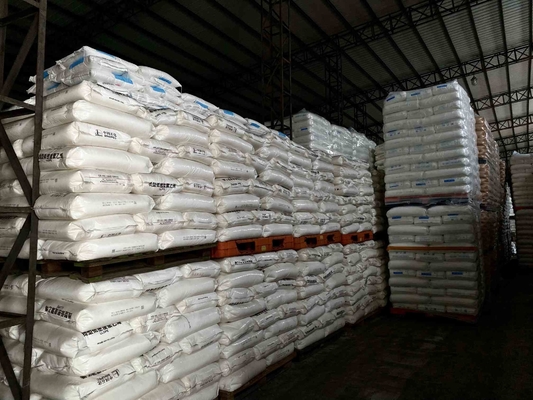

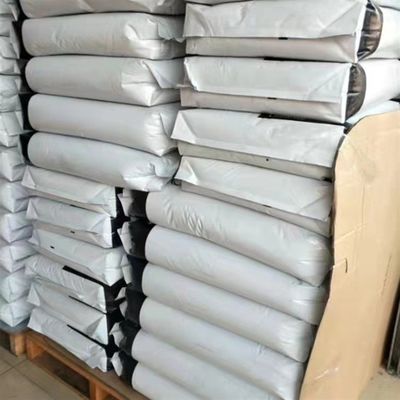

Warehouse:



Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 13 Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 14
Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 15 Invista U4820L PA66 Material Household Appliances Pa66 Polyamide Natural Color 16

FAQ

How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.

What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client





Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
