Product Details:

Place of Origin: Brazil
Brand Name: Solvay
Certification: MSDS
Model Number: PA66 A205F

Payment & Shipping Terms:

Minimum Order Quantity: 25KG
Price: USD3.2-4KG
Packaging Details: PE plastic/paper bag
Delivery Time: 7-15days
Payment Terms: T/T
Supply Ability: 500TONS
Get Best Price Contact Now

Detail Information

Color: Natural Color Grade: Injection Molding Grade
Packing: 25 Kg/pack Delivery Time: 7-15days
Port: ShenZhen/GuangZhou,China Ingredient: 100% Virgin Material
Application: Automotive Type: Raw Granules Resins
Highlight:

Solvay A205F BK PA66 Material

,

High Fluidity PA66 Material

,

High Fluidity Nylon Polyamide 66

Product Description



Products Description















Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 0















PA66 France Solvay A205F BK injection grade fluidity good ordinary lubricated nylon plastic raw materials



PA66 A205F with its rapid prototyping cycle, good flow, release performance, excellent mechanical properties, excellent chemical and oil resistance, excellent wear and wear resistance, flame retardant and low friction coefficient and other selling points, in electronic appliances, industrial applications, household accessories and other fields have a wide range of application prospects

product feature

PA66
A 205F
Product information
Part Marking Code >PA66<
Color NC
Material Shape Pellets
Process Injection molding
FR V-2
specification ·RoHS ·UL
Features ·High flow ·Rapid moldability ·Short cycle time
    ·Auto connector·Automotive Interior Trim ·Automotive parts ·Fasteners
    ·Office Applications·Bike parts·Fasteners·Outdoor Cactivities Applications
    ·Scooter parts·Skate parts·Capacitor·Charger housing·Circuit breakers·Coil skeleton
·Connector·E&EApplications·Instrument housing·Instrument parts
    ·Low voltage switches ·Microswitch·Power outlets ·Relay·Switches·Terminal block
·Toys parts·Construction Applications ·Safety helmet·Windows &Doors
Application ·Home Appliances Applications·Bearing·Bolts·Gasket etc·Gears·Housing
  ·Industrial Applications ·Industrial electric·Machinery parts ·Power tools
  ·Water pump parts·Kitchen Appliances Applications·Sports goods Applications
·Compacting equipment ·Medical device parts·Sports equipment Applications
  ·Bathroom Applications·Housewares application·Motorcycle parts·Thin wall applications
·Thin wall products·Cable ties ·Electrical cable ties ·Computer parts ·Plug adaptor
  · Injection molding applications
Additives Lubricant Mold Releases
UL File NO. E44716
Certificate W
Physical property Standard   Value Unit
Density ISO 1183   1.14 g/cm³
Shrinkage Flow INTERNAL METHOD   1.9 %
Shrinkage xFlow INTERNAL METHOD   1.9 %
Water Absorption 23℃ 24hr ISO 62   1.2 %
Mechanical behavior Standard Dry Wet Unit
Tensile Modulus Type 1A ISO 527 3200 1600 MPa
Tensile Strength Yield Type 1A ISO527 85 50 MPa
Tensile Strength Break Type 1A ISO 527 60 40 MPa
Elongation Yield Type 1A ISO 527 4 10 %
Elongation Break Type 1A ISO 527 25 200 %
Flexural Strength ISO 178 120 50 MPa
Flexural Modulus ISO 178 2900 1300 MPa
Izod Notch Impact Type A ISO 180 4.5 6 kJ/m²
Charpy Notch Impact leA ISO 179 4.5 8 kJ/m²
Charpy Un-notch Impact ISO 179 NB NB kJ/m²
Thermal Standard   Value Unit
HDT 1.8MPa ISO 75   75
HDT 0.45MPa ISO 75   220
Melting Temperature ISO 11357   263
CLE 23~85℃ ISO 11359   7E-5 cm/cm/℃
Electrical properties Standard Dry Wet Unit
Volume Resistivity IEC 60093 1E15 1E13 Ω.cm
Surface Resistivity IEC 60093 5E+14 1E13 Ω
Dielectric Strength IEC 60243 27 26 KV/mm
Dielectric Constant IEC60250 2.9 3.2
Dissipation Factor IEC 60250 0.03 0.08
CTI Solution A IEC60112 600 600 V
CTI Solution B IEC 60112 550   V
Flammability Standard   Value Unit
Flame Rating All Color 0.38mm UL94   V-2



Application





Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 1 Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 2



Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 3

Optical lighting



It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 4Electronic appliances



It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 5Mechanical equipment



It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields



Physical Property Parameter​

Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 6





Company Profile:



Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 7 Solvay A205F BK PA66 Material Injection Grade High Fluidity Nylon Polyamide 66 8

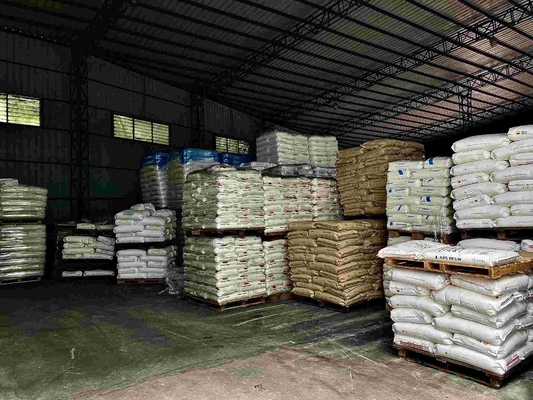

Warehouse:
