FM090 Plastic Material POM High Impact And Wear Resistance Low Moisture Absorption
Product Details:
| Place of Origin: | Taiwan, China |
| Brand Name: | Celanese |
| Certification: | Ocean freight appraisal report |
| Model Number: | POM FM090 |
| Document: | Company color page PC..pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 25KG |
|---|---|
| Price: | USD1.2-1.8KG |
| Packaging Details: | 25KG PE Bag |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T |
| Supply Ability: | 500Tons |
|
Detail Information |
|||
| Antioxidants: | Polyphenols | Flavor: | Pomegranate |
|---|---|---|---|
| Ingredients: | 100% Pomegranate Juice | Potassium: | 470mg |
| Molecular Weight: | 86.09 G/mol | Melting Point: | 165-175°C |
| Tensile Strength: | 55-80 MPa | Type: | 100% Virgin Material |
| Delivery Time: | 7-15days | Port: | ShenZhen/GuangZhou,China |
| Highlight: | FM090 Plastic Material POM,High Impact Plastic Material POM,Low Moisture Absorption Polyoxymethylene Material |
||
Product Description
Products Description
|
|
POM FM090 Plastic Steel High Impact and Wear Resistance and High Flow |
product feature
| (1) Automobile industry (2) Mechanical manufacturing (3) Electronic appliances (4) Food industry (5) Medical field (6) Architecture and sports (7) Other fields |
PFM090Product information
Other Certificates MSDS Part Marking Code >POM<
Color IV
Material Shape Pellets Process Injection molding
Polymer Copolymer FR HB
| specification Features | UL | |
| ·Medium | flow |
| Certificate |
|
 |
|
|
|||
| Density | ISO 1183 | 1.41 | g/cm³ |
| Shrinkage | SO 294 | 1.8~2.2 | % |
| Water Absorption | SO 62 | 0.2 | % |
| Melt Index | SO 1133 | 9 | g/10min |
|
Hardness Rockwell Hardness M(Scale) |
Standard SO 2039 |
Value 80 |
Unit |
|
Standard |
Value | Unit |
| Tensile Strength Yield | SO527 | 62 | MPa |
| Elongation Break | SO 527 | 35 | % |
| Flexural Strength | SO 178 | 88 | MPa |
| Flexural Modulus | SO 178 | 2500 | MPa |
| Charpy Notch Impact | ISO 179 | 6.5 | J/m² |
|
Standard |
Value | Unit |
| HDT 1.8MPa | SO 75 | 103 | ℃ |
| Melting Temperature CLE | SO 11357 | 165 | ℃ |
| SO 11359 | 1.2E-4 | cm/cm/℃ | |
| Electrical properties | Standard | Value | Unit |
| Volume Resistivity | EC60093 | 1E+14 | Q.cm |
| Surface Resistivity | EC 60093 | 1E+16 | Q |
| Dielectric Strength 3.0mm Break Down | EC 60243 | 19 | KV/mm |
|
Standard |
Value | Unit |
| Flame Rating All Color 0.8mm | UL94 | HB | |
|
Flame Rating All Color 3.0mm UL |
UL94 Standard |
HB Value |
Unit |
| UL FlameRating ALL0.8mm | UL94 | HB | |
| UL FlameRating ALL 3.0mm | UL94 | HB |
Application
|
|
|
Optical lighting
It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft. |
Electronic appliances
It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on. |
Mechanical equipment
It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields |
Physical Property Parameter
Company Profile:
Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.
|
|

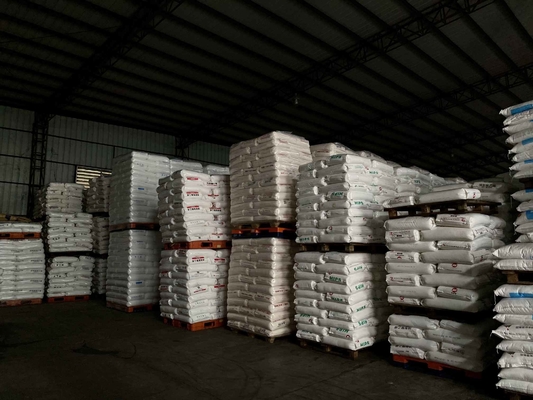

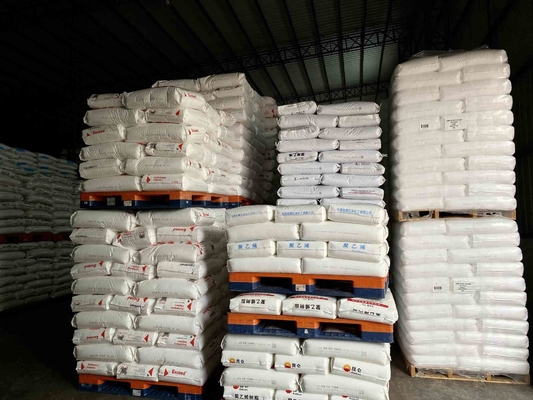

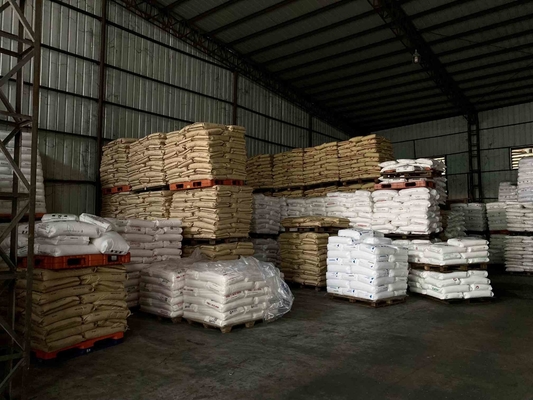

Warehouse:
|
|
|
|
| Application | Electronics electrical appliances mobile phones cars |
| Grade | Injection Grade,Extrusion Grade |
| OEM/ODM | Accepted |
